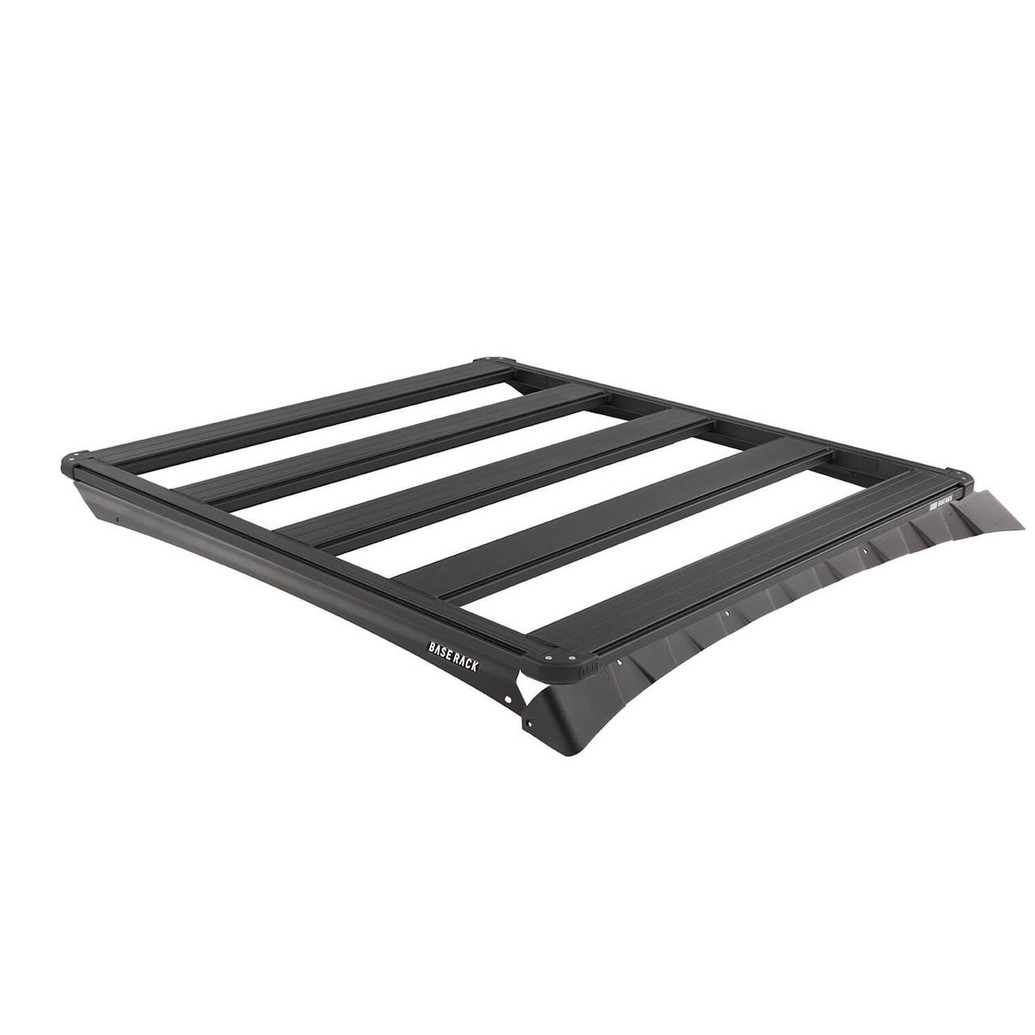

Base Rack Kit with Mount and Deflector 49x51 BASE301


Part Number: BASE301

Size Chart
The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization. The BASE Rack is fully-welded aluminum for lightweight strength that doesn't flex under load. It can therefore be mounted close to the vehicle roof for a slimline aesthetic and reduced drag. Its dovetail extrusion attachment system runs the full perimeter of the rack and along each internal beam providing endless mounting and attachment options. Adding, removing, and repositioning accessories and roof loads is quick and easy, and individual items may be installed or removed without disturbing the whole load. Unlike traditional roof rack channels, the BASE Rack dovetail system doesn't collect dust and debris. This kit includes a 49 in (L) x 45 in (W) BASE Rack and mount kit with wind deflector to suit the Toyota Tacoma. ;

Features & Benefits

  • Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no need for a supporting subframe and exerts no flex under load.
  • Maximum load per BASE Rack beam is 55 lb. Loads must be evenly distributed and adequately secured.
  • Extruded aluminum beams feature rigid internal bracing. The cross beam design provides a loading platform for a more versatile range of cargo, particularly long, thin items such as timber.
  • Finished in Integrit textured black powder-coat. This finish creates a durable, corrosion-resistant, scratch-resistant surface allowing you to easily clean off debris while the black color adds a sleek modern look to your vehicle.
  • Removable end caps allow access to the channel for installing hidden electrical cables for roof lighting and solar.
  • Unique dovetail mounting extrusion offers greater versatility, flexibility and speed in accessory placement and attachment. The dovetail design means less dirt entrapment and easy cleaning.
  • The BASE Rack does not interfere with the OE mounted antenna and clears the rear beam by approximately 1.2 inches.
  • The wind deflector mounted to the underside of the rack results in a quiet driving experience.
  • Suited to a dual-cab the BASE Rack is 49 in (L) x 45 in (W) and approximately 28 lb. The added minimum height to the vehicle is 2.4 inches.
  • Net payload is 122 lb per vehicle manufacturer stated load carrying capacity.

Kit Components

    • Color Black
    • Material Extruded Aluminum
    • Prop 65 No
    • Width 45 in
    • Finish Textured
    • Length 49 in
    • Warranty 3 YR
    [{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"Limited","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"SR","Liter":"2.7","CC":"2694","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"SR","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"SR5","Liter":"2.7","CC":"2694","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"SR5","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"TRD Off-Road","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2017-2023","Make":"Toyota","Model":"Tacoma","Submodel":"TRD Pro","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2016-2023","Make":"Toyota","Model":"Tacoma","Submodel":"TRD Sport","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2021","Make":"Toyota","Model":"Tacoma","Submodel":"Trail","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2023","Make":"Toyota","Model":"Tacoma","Submodel":"Trail Special Edition","Liter":"3.5","CC":"3456","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"}]
