$723.00
Part Number: SJB36SKIT
ARB Warranty
45-Day Returns
Fast Shipping
The ARB Intensity SOLIS is a welcomed update to an iconic Australian driving light, producing clean and crisp light with further-refined color temp on the LED. This helps reduce eye strain and fatigue on long-distance driving while reaching amazing distances down the road to improve safety. With the new updates to the ARB Intensity SOLIS driving lights, spot and flood combinations are excellent choices providing a long throw and wide beam. Continuing a tradition of never compromising, superior-grade electronics and LEDs, first-class ARB active-thermal management, new grades of paint finishes for the bezels, and optimized lens and optic configurations, the ARB Intensity range of lights continues to sets new standards in vehicle lighting. ;
Features & Benefits
- 36 Osram LEDs 6x10w And 30x4w
- Power Draw 165W
- Current Draw 12.4 Amps 13.2V
- Security TORX Hardware Included
- Raw Lumens 18178LM
- Distance at 1Lux - 1032m Spot
- 729m Flood (Single Light)
- Protected Against RFI/EMC Interference
- High Pressure Die-cast Aluminum Body and Mount
- UV Stable Molded Polycarbonate Lens Cover
- Durable UV Stable Powder Coat
- Dust and Waterproof To IP69
- RoHS Compliant

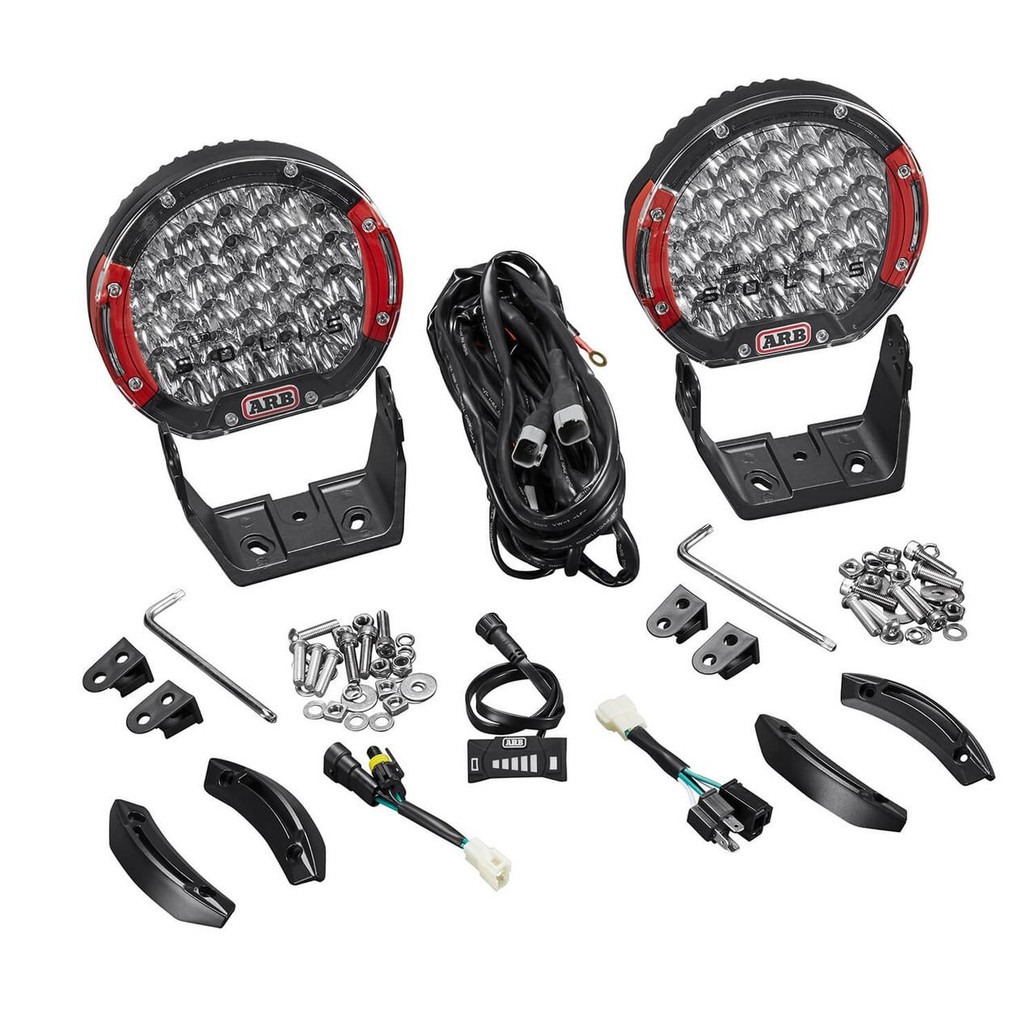

Kit Components
- SJBHARN Intensity Solis Wiring Loom, 1
- SJB36S Intensity Solis Spot Driving Light, 2
- Weight 7.27lbs
- Color Temp 5700k
- Dimensions 8.9 in (W) X 8.7 in (H) X 4.7 in (D)
- Output Raw Lumens 18,178 lumens
- Operating Temperature From -40F to 149F
- Output Effective Lumens 9,546 lumens
- Lux 1032m
- Watts 165 Watts
- Spread 6 degrees
- Prop 65 No
- Effective Lumens 9,546 lumens
- Warranty 3 YR
Recommended Products & Accessories
Out of stock
Out of stock
Out of stock
Product Highlights
5 STAGE DIMMABILITY
INTERCHANGEABLE BEZELS
OPTIONAL COVERS
A NEW INTENSITY OF DRIVING LIGHT
Filled with features, Intensity Solis LED driving lights are available in two great sizes, with a 9-inch (36 LED) and 7-inch (21 LED) option. Both sizes have an option for either Spot or Flood beam, and all lights come with interchangeable red and black die-cast side bezels. New to the Intensity range is the Solis’ 5-stage dimmability function, while the introduction of a highly tuned single-piece reflector and 165 watts of OSRAM LED performance bring it to the top of the class in light output.
FLOOD AND SPOT VARIANTS
The Intensity Solis range is available in dedicated spot and dedicated flood variations which connect to a centralized dimming controller in the wiring loom.
SPOT, FLOOD OR A COMBINATION?
How you set up your driving lights should reflect the type of driving and terrain you are driving in.
In areas of wide open land and fast roads such as Outback Queensland, New South Wales and the Northern Territory, a set-up of two spot lights will give you the best throw of light reaching as far down those long straight roads as possible.
For drivers who are predominantly in heavy bush with lots of winding roads such as the Victorian High Country, a set-up of two flood lights will fill the foreground, giving you great visibility to the side of the roads where roos like to hide and through the next close corner.
For most drivers, however, the combination of one spot (driver’s side) and one flood provides the best of both worlds. The single spot throws a strong direct beam down the road over 1/2 mile, while the flood beam fills the foreground and roadside what is often considered the optimal driving light pattern and output.
LIGHT OUTPUT AND DIMMABILITY
With an impressive array of LEDs and a highly tuned reflector design the Intensity Solis has been brought to the top of the class in light output.
The larger Intensity Solis 36 contains a combination of 6x 10 watt and 30x 4 watt OSRAM LEDs, and when measured as a pair of spot beams, the Solis 36 boasts 1 lux @ 4798 feet. Individually, a single flood beam will achieve 1 lux @ 2391 feet while one spot beam has an impressive 3385 foot throw.
Packing a significant punch for their size, the Intensity Solis 21 possess a combination of 6 x 5 watt and 15 x 4 watt OSRAM LEDs, and when measured as a pair of spot beams, the Solis 21 boasts 1 lux @ 3875 feet. Individually, a single flood beam will achieve 1 lux @ 2034 feet while one spot beam has an impressive 2740 feet @ 1 lux.
Lights this bright need some level of containment, which is why Intensity Solis lights are sold standard with a 5-stage dimmability switch. The ability to dim driving lights is perfect for when you’re approaching highly reflective road signs and is also really effective in low visibility scenarios (such as dust).
LIGHT PROFILE
While the Solis’ light output figures are impressive, what the light really offers the driver is so much greater!
The ultimate goal when designing a driving light is to get two light patterns, one spot and one flood, that offer light where you actually need it. To be most effective, a driving light needs to light the areas of the road and surrounds that match the terrain and driving style. Your driving lights need to be effective either as a matching pair (of spots or floods) or as a combination (one spot and one flood). Creating a light pattern that shines the furthest doesn’t always mean the light is useable – let alone optimal.
Driving lights need to have good central light and shouldn’t have harsh edges, but rather a good feathering of light that bleeds off. Additionally, the light should not be too white as it can cause additional eye strain for the driver, nor should the light throw too much intensity onto the foreground directly in front of the vehicle.
ARB Intensity Driving lights (V2 and Solis) are tuned to provide the optimum offering to suit the above criteria.
-
INTENSITY 36 SPOT & FLOOD BEAM LUX SPECIFICATIONS
-
INTENSITY 21 SPOT & FLOOD BEAM LUX SPECIFICATIONS
SQUATTING DESIGN STRENGTH
The squat shape of the new light better suits the bumper pan mounting and helps with lowering the center of gravity of the lights, making them more stable with less oscillation and vibrating which puts less stress on light and bumper mounting components (including tabs where applicable).
The Solis light is mounted in an all black, vertical-pivoting adjustable, cast aluminum cradle.
Looking at the side profile, ARB engineers have shaped the heat sink casting with a narrower section at the top of the light and a wider section towards the base. The result? A large light which fits a wide variety of applications with more room to fit in front of big tubes, like what is used on ARB Summit Sahara bumpers.
