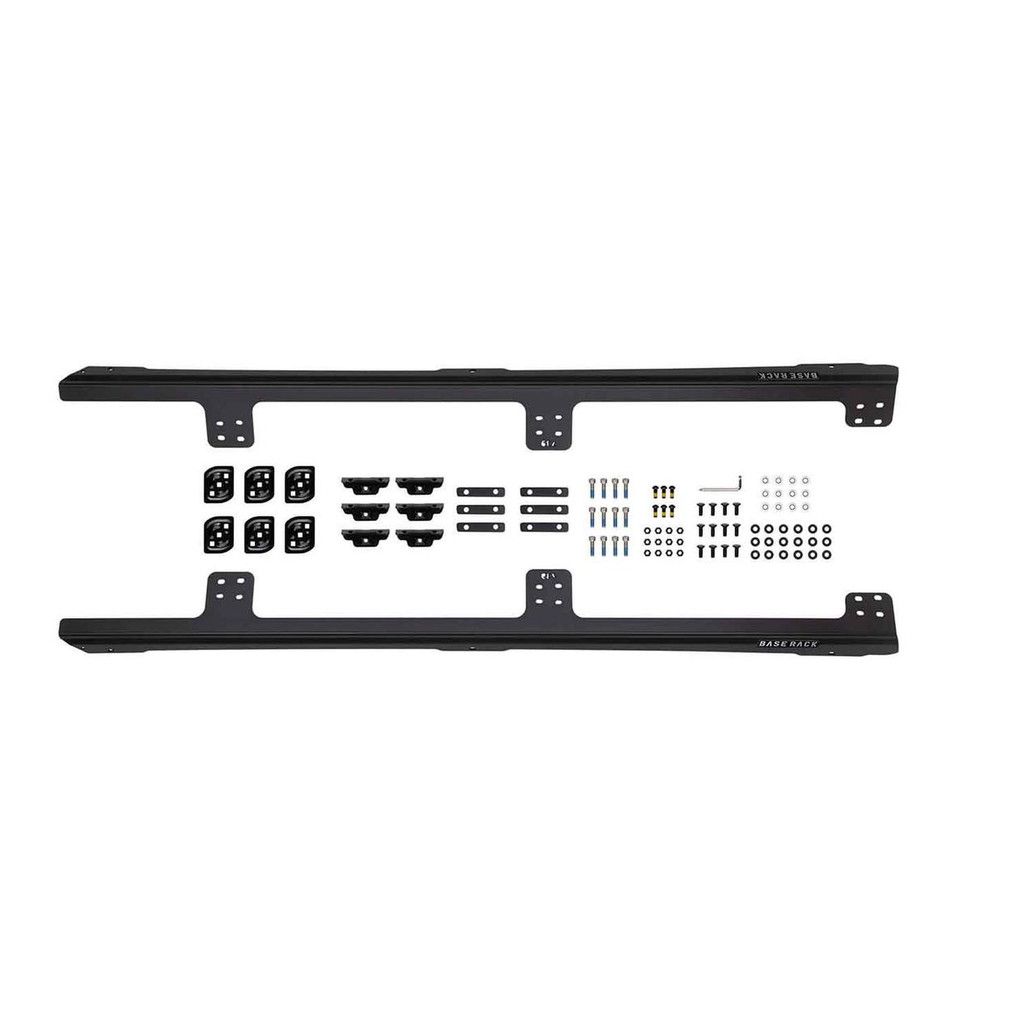

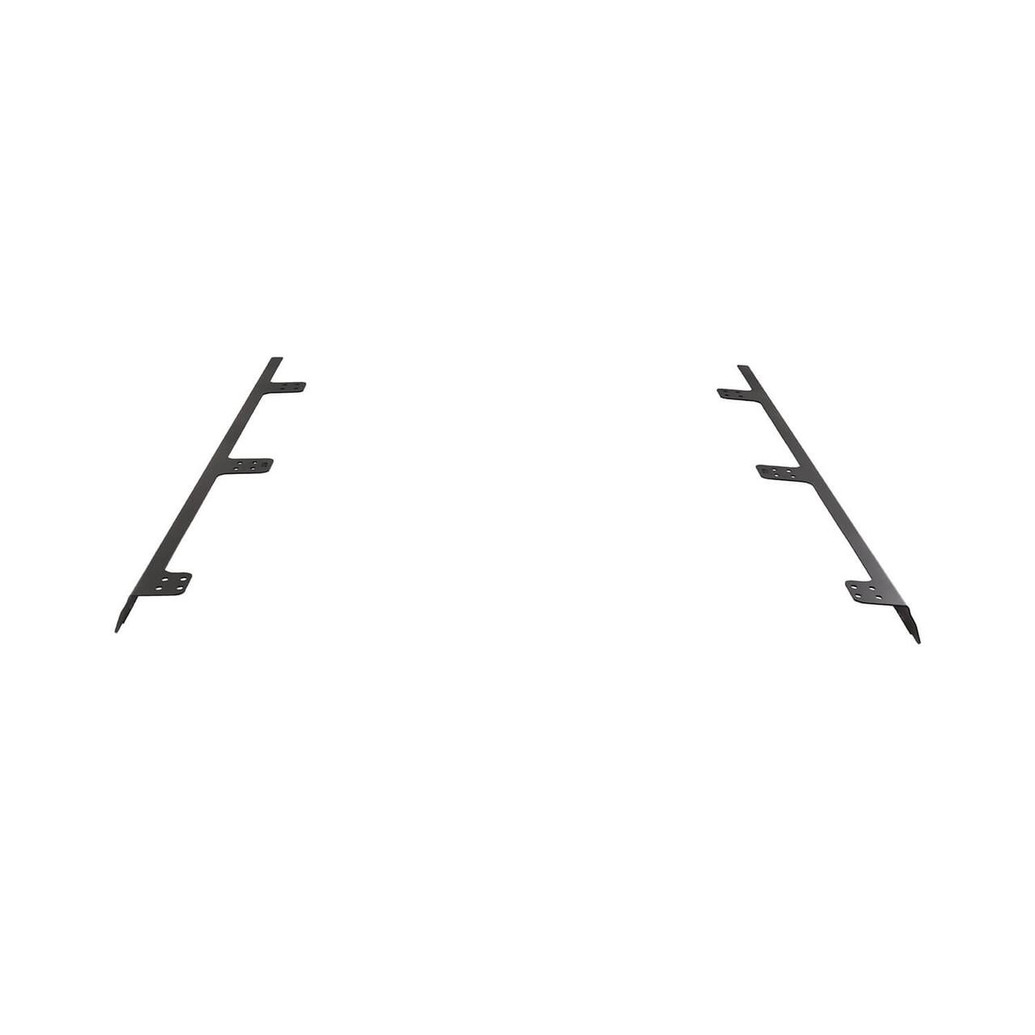

BASE Rack Mount Kit 17950010
$595.95
Shop Your Vehicle
My Garage
Submit
Reset
The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed and personalisation. With a choice of sizes, accessories and attachments, you can truly Make It Your Own. By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options. Adding, removing and repositioning accessories and roof loads is quick and easy with the BASE Rack's dovetail system, making it easier to install and remove individual items without disturbing the whole load. Plus, unlike traditional roof rack channels, the BASE Rack dovetail extrusion won't collect dust and debris. Each BASE Rack accessory or fixture attaches to the rack with a simple clamp mount, including larger hardware such as Hi-Lift Jack mounts, rollers, recovery boards and even a BASE Rack custom light bar. ;
Features & Benefits
- Integrit Textured Black Finish
- Support Plates Suit The BASE Rack Extrusion
- Prop 65 No
- Warranty 3 YR
Recommended Products & Accessories
BASE Rack Mount Kit 17913010
$358.95
BASE Rack Mount Kit 17920020
$294.95
BASE Rack Mount Kit 17920010
$257.95
Product Highlights
Introducing the next phase in roof rack evolution… ARB BASE RACK
Ultra sleek, boasting a super low profile and lightweight design, the BASE Rack provides unmatched simplicity, flexibility and personalization in your roof rack set-up. Setting a new benchmark in strength and integration, the BASE Rack incorporates a revolutionary dovetail mounting system that makes attaching and removing loads and accessories easier, faster and more secure.
DESIGN STRENGTH MEETS STYLE
Fully-welded from extruded aluminum with a cross beam design, the BASE Rack has no requirement for a supporting subframe and exerts no flex under load. Each internal and perimeter beam is constructed from a single seamless extruded aluminum box piece with internal bracing for added strength.
The superior strength properties is what has allowed such close mounting to the vehicle’s roofline.
Features
LOW-PROFILE
Ultra sleek, low-profile design
POWDER COATED
Textured black powder coat finish
HIDDEN ELECTRICAL CABLE
Removable end caps allow access to the channel for installing hidden electrical cables for roof lighting and solar.
FULLY WELDED
Fully welded construction for superior strength and rigidity
DOVETAIL MOUNTING SYSTEM
Unique new dovetail mounting extrusion offers greater versatility, flexibility and speed in accessory placement and attachment. The dovetail design means less dirt entrapment (easy cleaning).
RANGE OF ACCESSORIES AVAILABLE
Purpose-designed range of quick release dovetail accessories requiring few or no tools.
LIGHTWEIGHT
Lightweight, cast aluminum crossbeam function.
COMPATIBLE WITH EXISTING T-SLOT ACCESSORIES
*Additional adapters sold separately
SIDE-MOUNTED FIXING POINTS
Side-mounted fixing points allow greater use of rack beams for cargo loading
STRONG
The BASE Rack is manufactured from extruded aluminum beams. To further increase each beam’s rigidity, an additional aluminum bracing has been introduced which runs the entire length of each and every perimeter and internal cross-section.
Unique in design, the BASE Rack runs its beams horizontally instead of laterally, resulting in maximum strength and rigidity. Its strength omits the need of a subframe allowing the rack to sit lower for a sleeker finish.
-
Not only is it a strong rack, it’s a quiet one!
During the design process, the ARB’s team of engineers undertook extensive testing when it came to the concept of running the internal beams perpendicular to the vehicle. This has taken away concern of increased wind noise, as it was found that not only is the BASE Rack nice and strong – it’s also quiet!
The wind noise testing revealed that the majority of cabin noise from roof racks comes from only the very front perimeter cross-section, and this was very easily overcome with a formed wind-deflector which mounts on the underside of the rack on wagons with blade mounts.
The result? A very comfortable and quiet roof rack experience!
LOW-PROFILE
A one-piece, fully welded platform rack fitted to a range of low-profile blade mounts, the BASE Rack provides improved access into low clearance areas, all the while looking sleek on the roof of your vehicle.
UNIQUE DOVETAIL DESIGN
By incorporating a dovetail extrusion around both the full perimeter and along each edge of the internal beams, the BASE Rack provides endless mounting and attachment options.
Side mounting also frees up more uninterrupted cargo space along the top of each internal and external beam.
THE BASE RACK IS BUILT TO CARRY GEAR
…and a whole lot of it
CABLES BE GONE
Nothing ruins the sleek look like visible electrical cable. Yet another advantage of the aluminum extruded beam design is that electrical cabling can be fed in either through the removable corner caps or via the capped access points available on the inner surface of the side perimeter beams. Additional holes can easily be introduced along the perimeter beams wherever you are mounting your work or driving lights.
THE RANGE
The BASE Rack is available in a number of sizes to complement the vast range of 4×4’s on the market.
Sold standard as a low-profile platform rack, then it can easily transform into a touring or trade rack by simply installing the rail system that best suits your needs!
-
As each size reduces, the BASE Rack drops an internal beam.
Note:Vehicle specific mounting kit required to fit ARB Base Rack to vehicle.
PART#
DIMENSIONS BEAMS WEIGHT CARRYING
CAPACITYSUITED TO 1770060 49 IN (L) X 45 IN (W) 5 28.0 lbs 275.6 lbs Dual-cab 1770070 49 IN (L) X 51 IN (W) 5 31.5 lbs 275.6 lbs Dual-cab 1770020 61 IN (L) X 51 IN (W) 6 36.6 lbs 330.7 lbs Single-cab, short canopy or wagon with sunroof 1770010 72 IN (L) X 45 IN (W) 7 39.0 lbs 385.8 lbs Narrow canopy 1770030 72 IN (L) X 51 IN (W)
7 43.9 lbs
385.8 lbs Wider canopy or Smaller Wagon 1770040 84 IN (L) X 51 IN (W)
8 50.3 lbs 440.9 lbs Larger Cab Wagon
GUARD RAIL SYSTEMS
The BASE Rack rail system is available in full, quarter three-quarter and trade configurations,
Attaching quickly and easily to the dovetail extrusion around the rack’s perimeter, the range of optional rails mean you can have a full guard rail system on or off in just a few minutes!
-
Designed for the tourer. The rails running around the perimeter of the rack act as a load block, helping to prevent larger items such as swags and tents from shifting when loading and unloading, as well as during transit.
-
A cross between full and trade rails, 3/4 rails, along with an optional roller kit, assist with easy rear loading of large and awkward items while still providing load security at the front of the rack. Also designed for rear folding rooftop tents, subject to tent width.
-
Perfect for campers, this style of rail is great for rooftop tents while still providing ample storage and load security at the front of the rack.
-
The trade option; great for loading long items such as timber and ladders with an optional roller kit to help glide long or awkward items onto the rack. The side rails prevent items from slipping or rolling of the rack during loading and allow you to fill the rack right up to the edge.
MAKE IT YOUR OWN
The BASE Rack takes accessories and cargo loading to a whole new level of simplicity, speed, and personalization thanks to its revolutionary side-mounting dovetail system. With a choice of sizes, accessories, and attachments, you can truly Make It Your Own.
Adding, removing, and repositioning accessories and roof loads is quick and simple with the BASE Rack’s dovetail system, making it easier to install and remove individual items without disturbing any other cargo or lashing points.
