$499.95
Part Number: CKBLA12
ARB Warranty
45-Day Returns
Fast Shipping

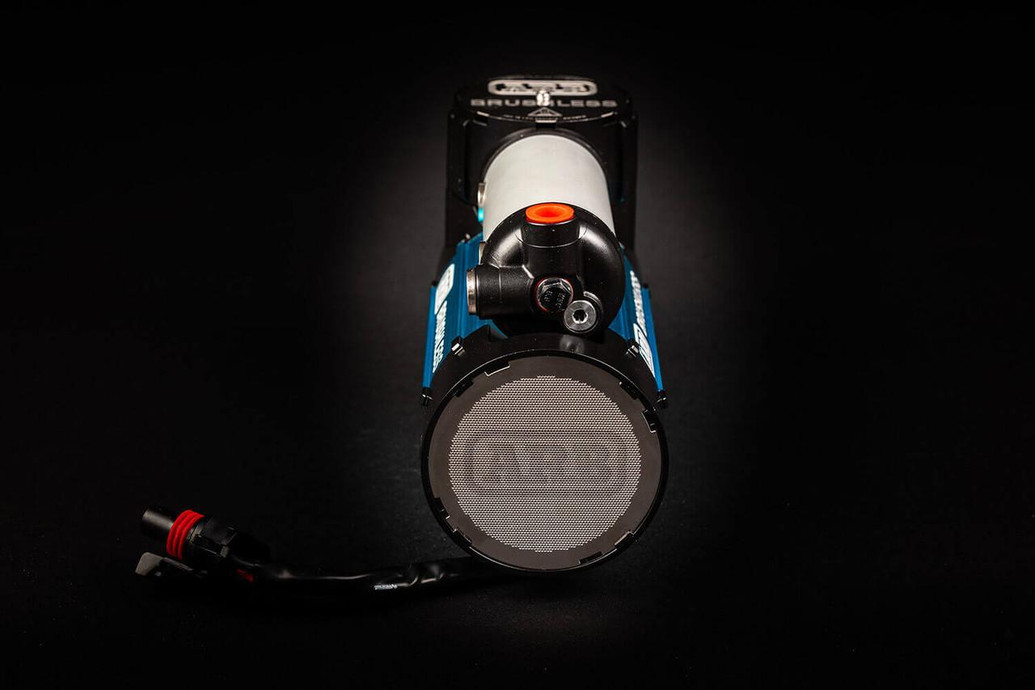

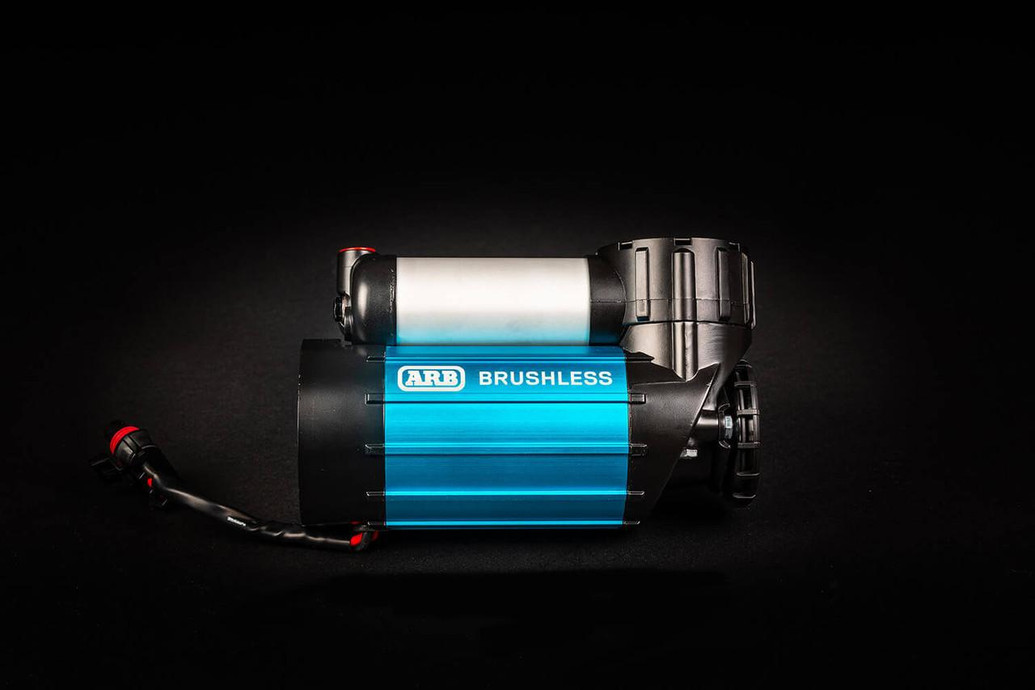

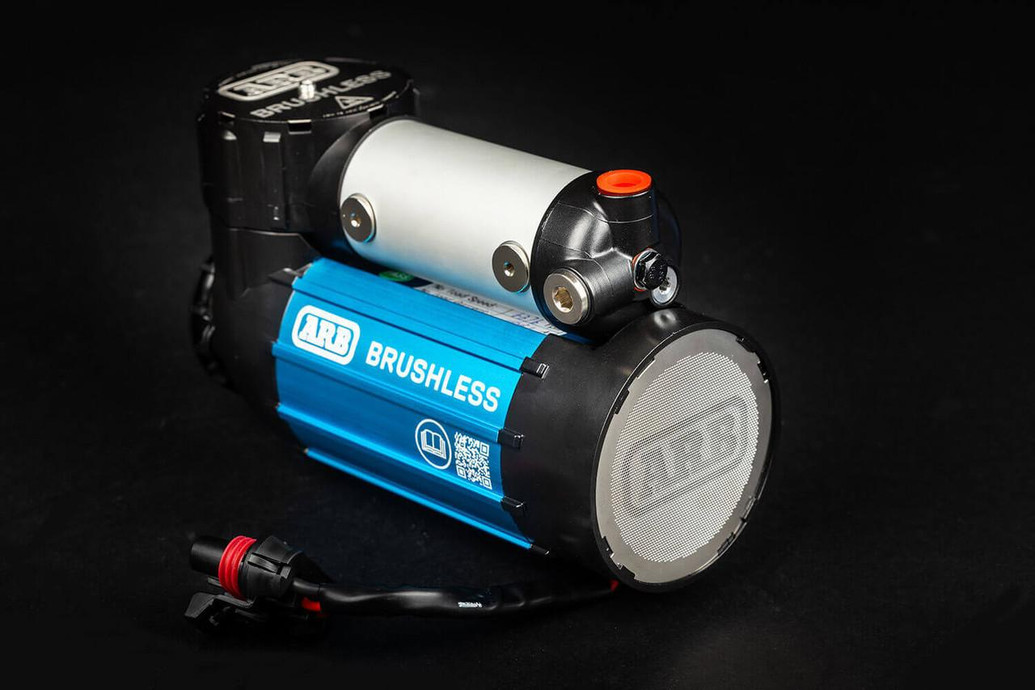

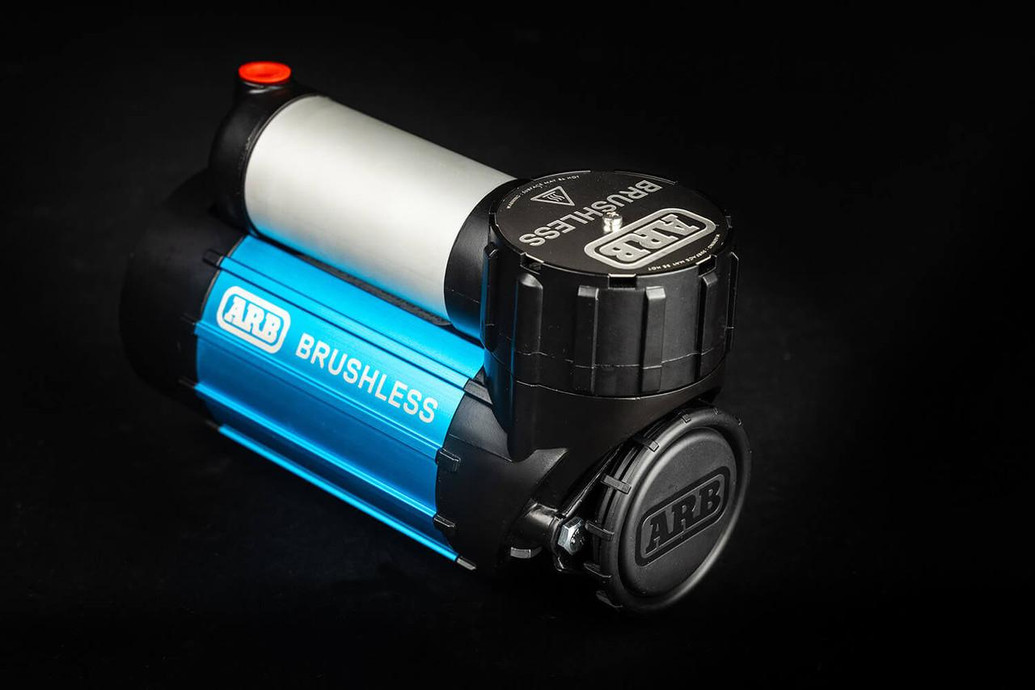

ARB has expanded its line of premium air compressors with the new Brushless series. Long known as a leader in onboard and portable air compressors, the new ARB Brushless lineup offers the ultimate air compressors, featuring brushless electric motors, built in fans for active cooling, cutting-edge smart technology, and an impressive 50% increase in air output compared to ARB’s current market-leading compressors. ARB Brushless Air Compressors are compatible with ARB’s existing range of air accessories and hose kits, and ARB Air Lockers, making upgrading your current air system super easy! ARB Brushless Air Compressors allow you to spend less time inflating, and more time having fun: Quick Air, More Adventures.
Product-only Dimensions
5.5" x 8.3" x 3.5" (6.8 Lbs)
Features & Benefits
- 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring
- Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
- Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
- Status Reporting – Live diagnostics via audio and visual alerts
- Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
- Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems

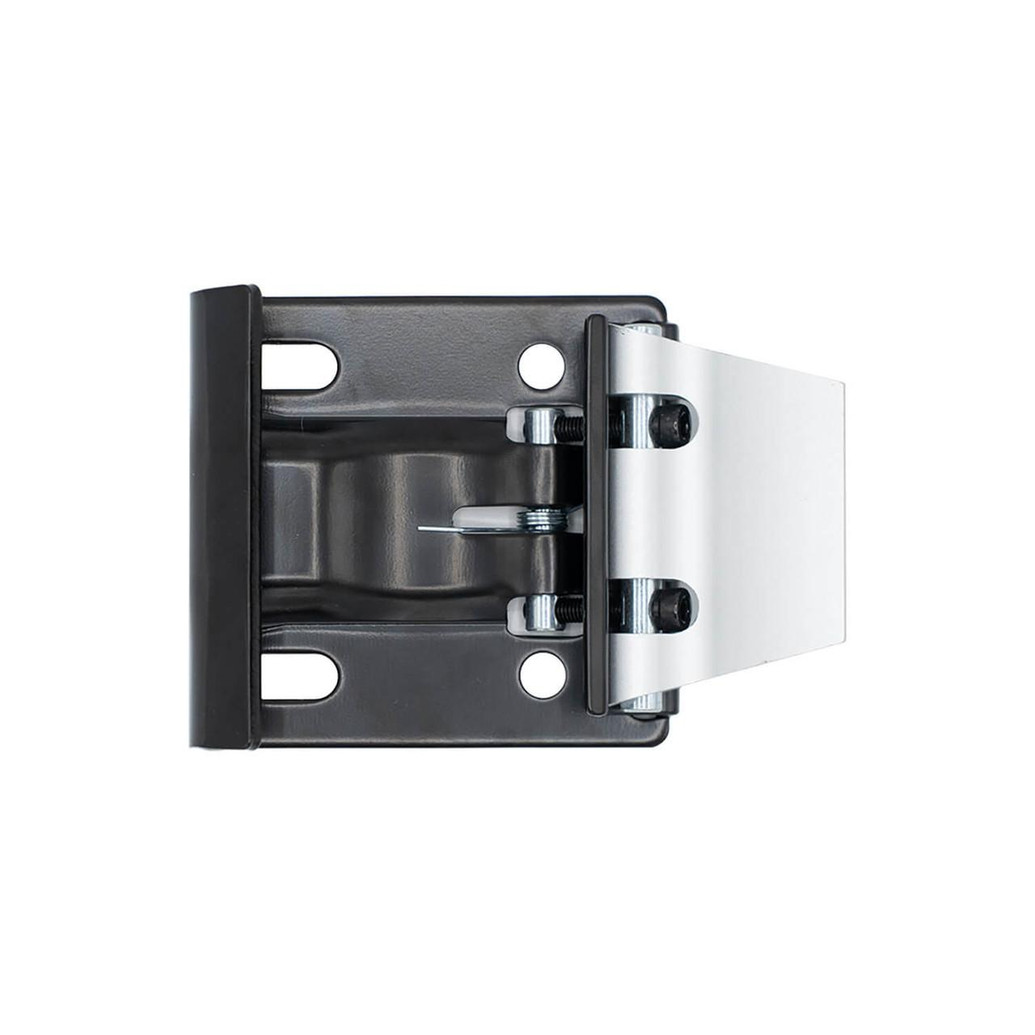

- Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
- Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time
- Volts 12V
- Width 10.83 inch
- Height 6.1 inch
- Length 12.8 inch
- Weight 9.5 lb
- Prop 65 No
- Max Amps 45
- IP Rating IP67 Water Resistant
- Duty Cycle 100%
- Air Flow 0PSI 4.59 CFM
- Air Flow 29PSI 3.10 CFM
- Design Brushless
- Warranty 3 YR
