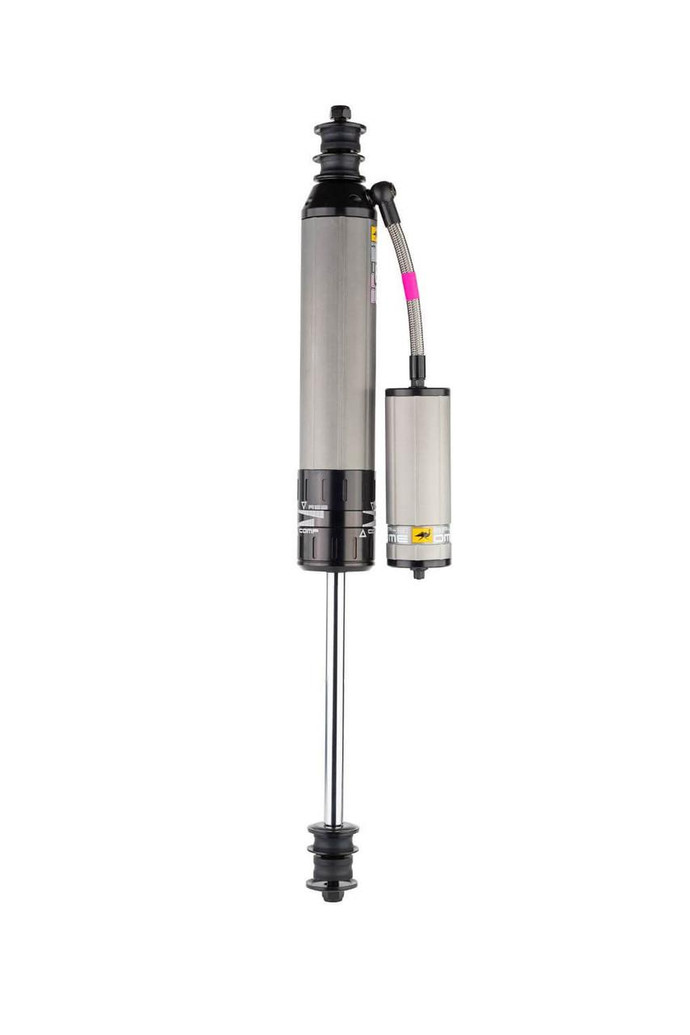

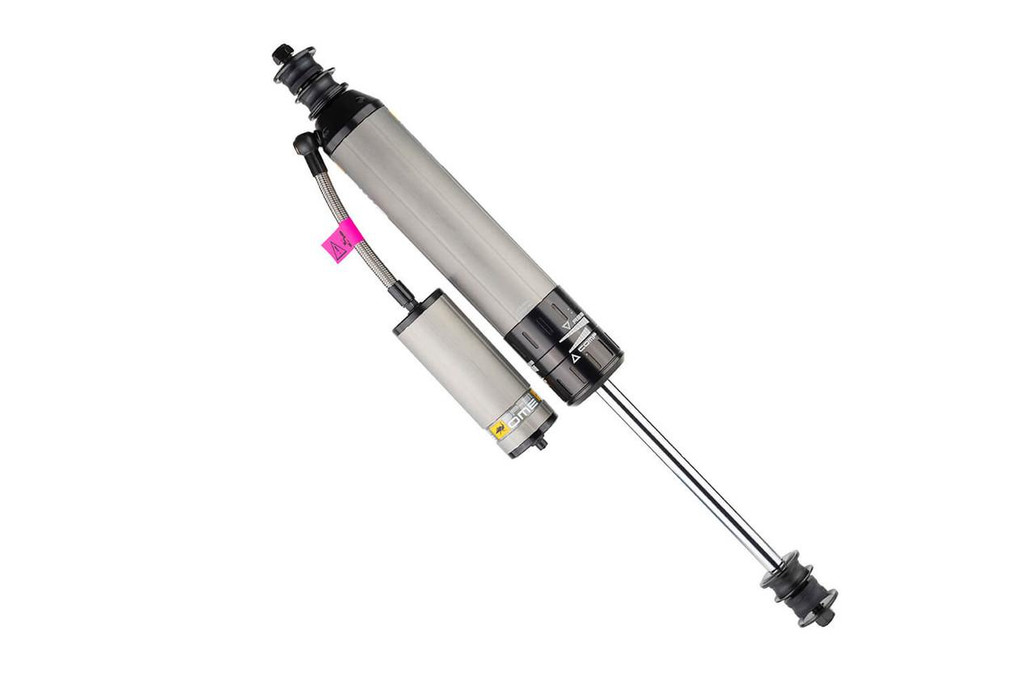

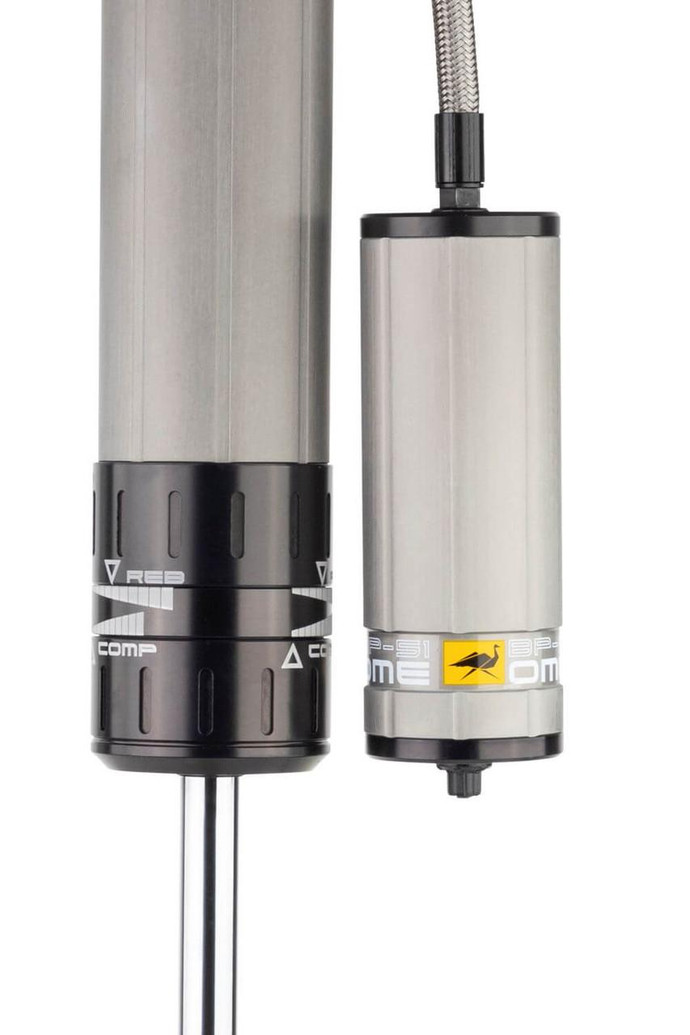

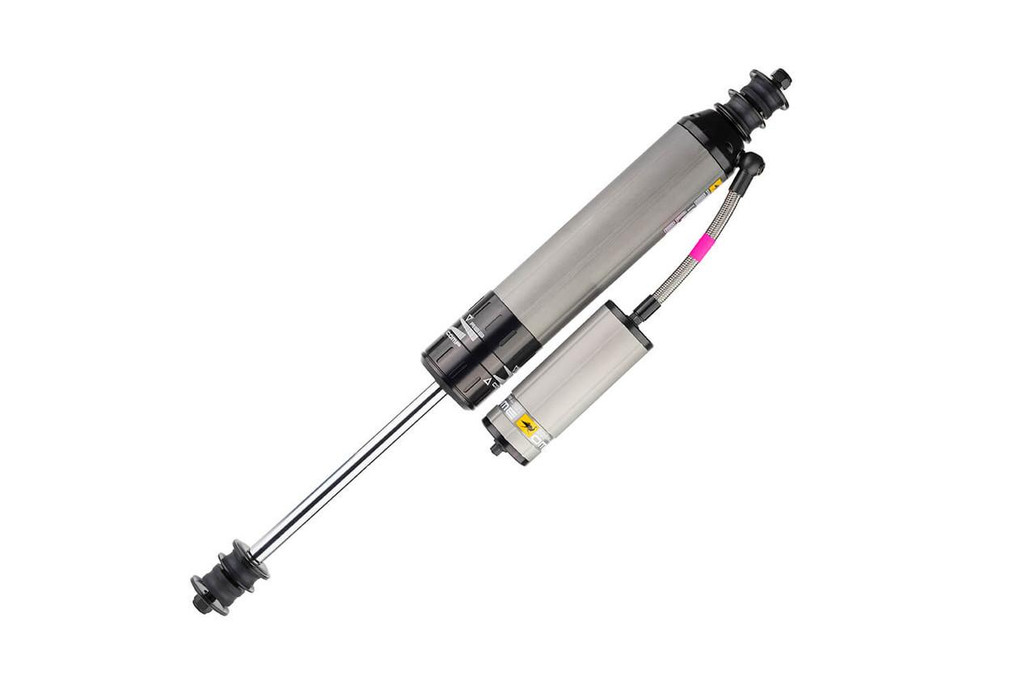

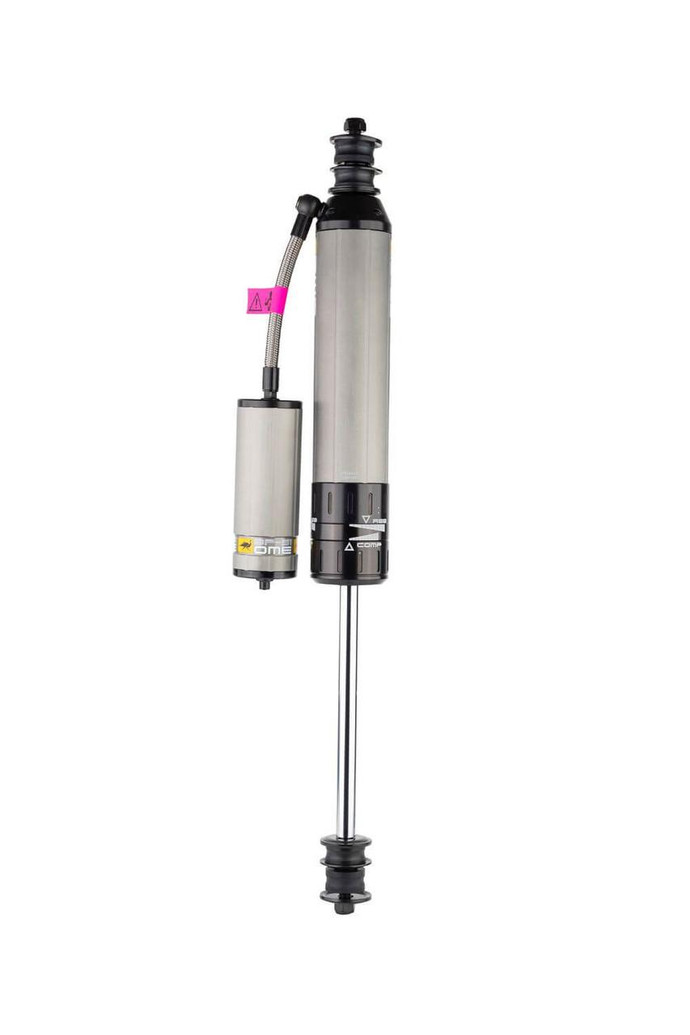

    Front BP-51 Bypass Shock Absorber BP5160043

    $573.00
    |

    Part Number: BP5160043

    Size Chart
    ARB Warranty

    ARB Warranty

    45-Day Returns

    45-Day Returns

    Fast Shipping

    Fast Shipping

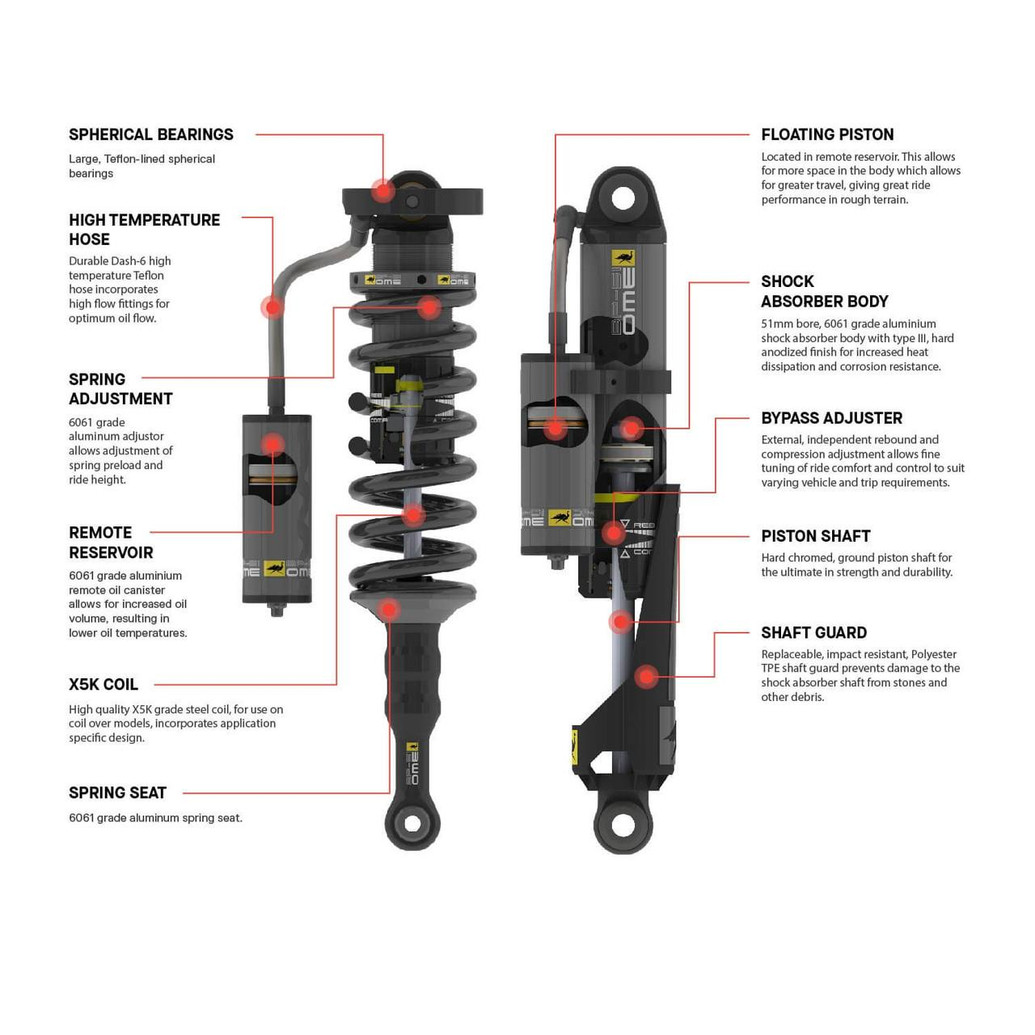

    Old Man Emu brings racing technology to every day adventures: BP-51 (Bypass 51mm diameter bore) shock absorbers feature revolutionary, patent pending technology developed to deliver unparalleled on and off road performance. Developed and extensively tested under the harshest conditions in Australia, these big bore, position sensitive bypass shock absorbers with remote reservoir are designed to bolt onto your vehicle without any vehicle modifications and combine considerable ride comfort around town with significant amounts of end-zone damping for exceptional chassis control and handling off road. The damping performance is easily adjustable across a wide range of rebound and compression, resulting in significant changes to the ride performance of your vehicle, enabling a custom tune to suit the conditions and vehicle set up. The body, reservoir and components are all made from 6061 T6 aluminum, Type 3 40 micron hard anodized ensuring exceptional heat dissipation, corrosion resistance and resistance to stone damage. Not only designed, developed and tested entirely by ARB's team of Old Man Emu ride engineers, all BP-51 shock absorbers are manufactured in-house by ARB. In order to achieve this, significant investment has been made in state of the art machinery providing ARB total control of the manufacturing process to ensure the highest possible quality. ;

    Features & Benefits

    • Internal Bypass/Shim Controlled/Position Sensitive Damping
    • Provides Comfort At Ride Height
    • Damping Increases As You Get Closer To The End Zone
    • Increased Control At End Zones
    • Maximum Bore Size And Bypass Diameter
    • Greater Oil Volume
    • More Tunable Ability To Generate Force
    • On Car Adjustable
    • Color Grey
    • Material Aluminum
    • CA Prop 65 No
    • Open Length 606mm
    • Closed Length 364mm
    • Construction 51mm Bore, 6061 Grade Aluminum Body; Polyethylene Shaft Guard; Rubber Bushings
    • Prop 65 No
    • Design Bypass
    • Warranty 3 YR
