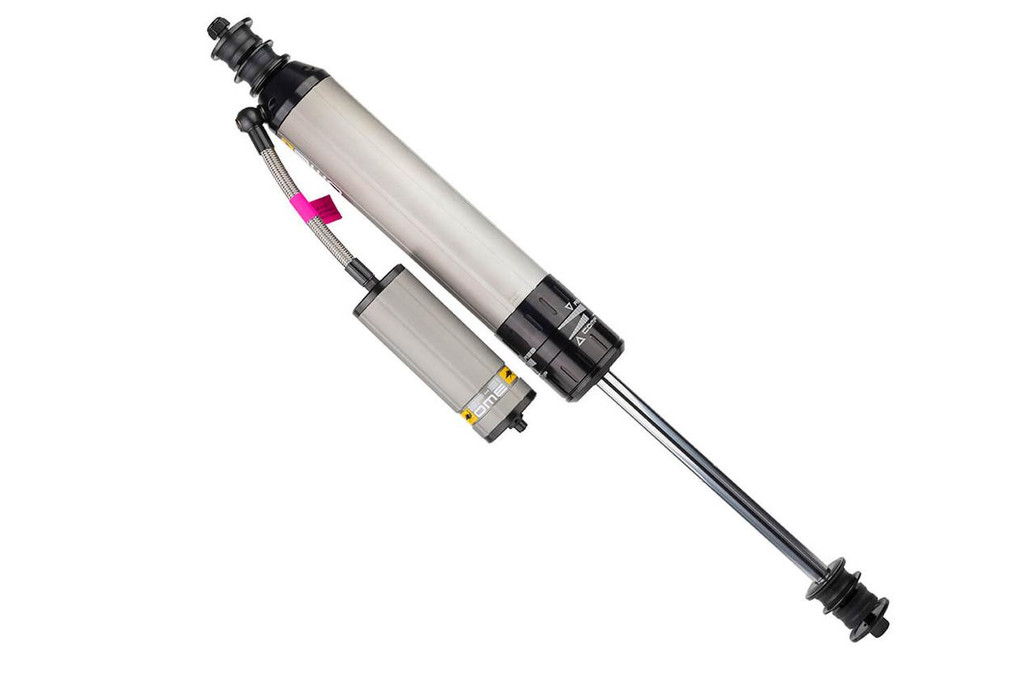

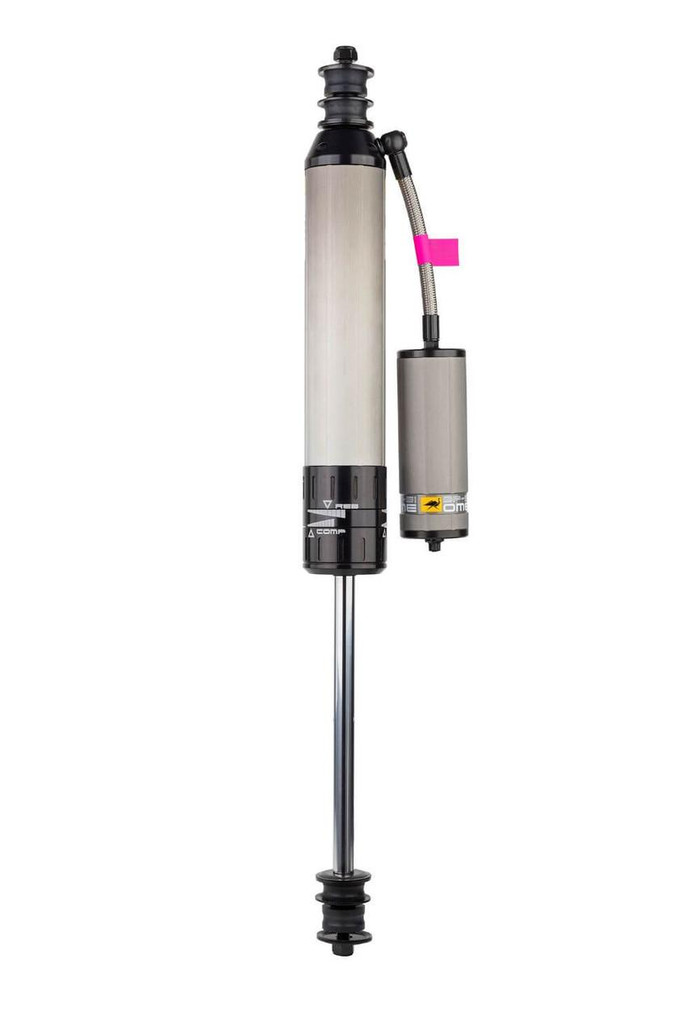

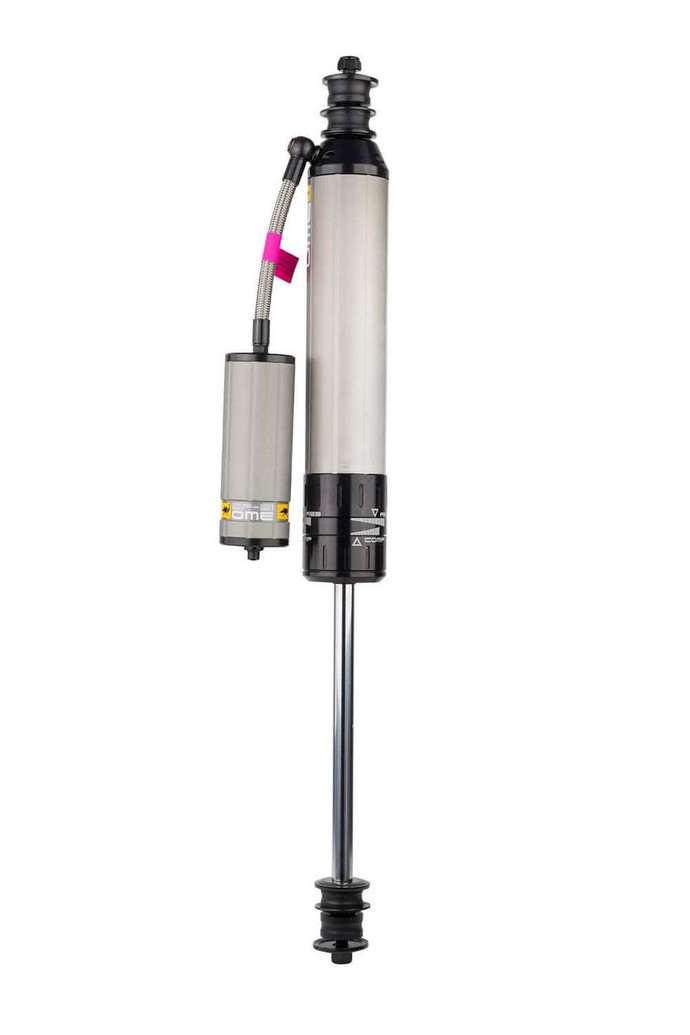

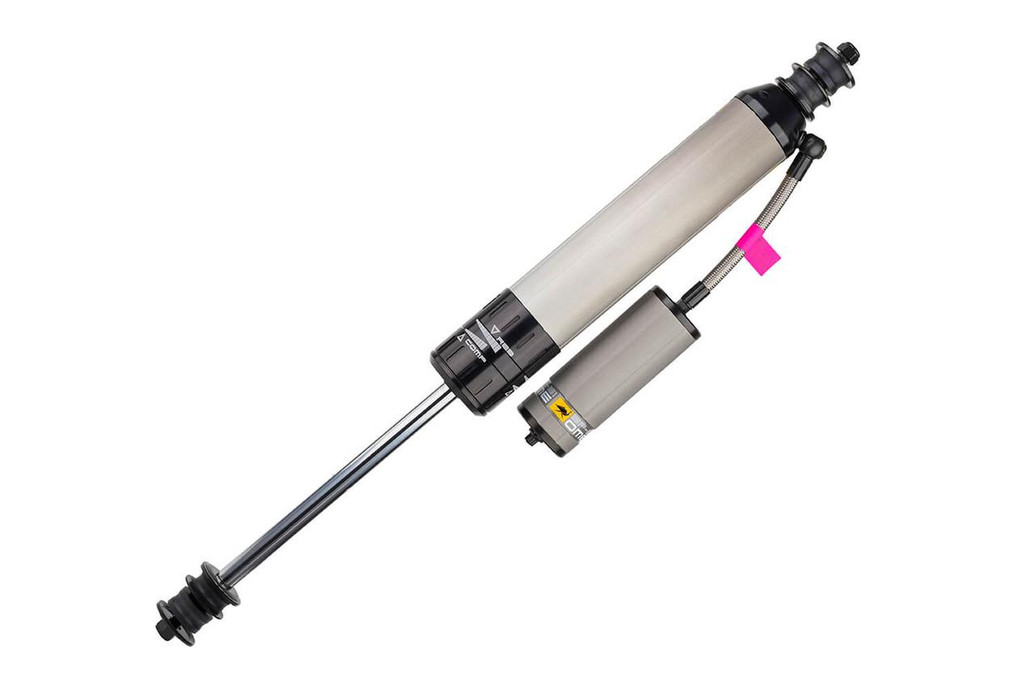

    Front BP-51 Bypass Shock Absorber BP5160044

    $573.00
    |

    Part Number: BP5160044

    Size Chart
    ARB Warranty

    ARB Warranty

    45-Day Returns

    45-Day Returns

    Fast Shipping

    Fast Shipping

    Old Man Emu brings racing technology to every day adventures: BP-51 (Bypass 51mm diameter bore) shock absorbers feature revolutionary, patent pending technology developed to deliver unparalleled on and off road performance. Developed and extensively tested under the harshest conditions in Australia, these big bore, position sensitive bypass shock absorbers with remote reservoir are designed to bolt onto your vehicle without any vehicle modifications and combine considerable ride comfort around town with significant amounts of end-zone damping for exceptional chassis control and handling off road. The damping performance is easily adjustable across a wide range of rebound and compression, resulting in significant changes to the ride performance of your vehicle, enabling a custom tune to suit the conditions and vehicle set up. The body, reservoir and components are all made from 6061 T6 aluminum, Type 3 40 micron hard anodized ensuring exceptional heat dissipation, corrosion resistance and resistance to stone damage. Not only designed, developed and tested entirely by ARB's team of Old Man Emu ride engineers, all BP-51 shock absorbers are manufactured in-house by ARB. In order to achieve this, significant investment has been made in state of the art machinery providing ARB total control of the manufacturing process to ensure the highest possible quality. ;

    Features & Benefits

    • Internal Bypass/Shim Controlled/Position Sensitive Damping
    • Provides Comfort At Ride Height
    • Damping Increases As You Get Closer To The End Zone
    • Increased Control At End Zones
    • Maximum Bore Size And Bypass Diameter
    • Greater Oil Volume
    • More Tunable Ability To Generate Force
    • On Car Adjustable
    • Color Grey
    • Material Aluminum
    • CA Prop 65 No
    • Open Length 656mm
    • Closed Length 389mm
    • Construction 51mm Bore, 6061 Grade Aluminum Body; Polyethylene Shaft Guard; Rubber Bushings
    • Prop 65 No
    • Design Bypass
    • Warranty 3 YR
    We’re looking for stars!
    Let us know what you think
    Questions & Answers
    Have a question?
    Be the first to ask something about this product.

    Product Highlights

    • suspension_bp-51-bore

      POSITION SENSITIVE DAMPING

      Damping increases as you get closer to the end zone, meaning you’ll experience increased control at end zones and comfort at ride height.

    • suspension_bp-51-adjustable

      ADJUSTABLE

      External, independent rebound and compression on-car adjustment allows fine tuning of ride comfort and control to suit varying vehicle, load and trip requirements.

    • suspension_bp-51-ports

      QUALITY ALUMINIUM MATERIAL

      51mm bore, 6061 grade aluminium shock absorber body with type III, hard anodised finish for increased heat dissipation and corrosion resistance.

    • suspension_bp-51-material

      BOLT-IN APPLICATION SPECIFIC

      Every BP-51 is expertly engineered to bolt-in to your vehicle, meaning no fitting modifications are required and no adjustments.

    BP-51 (BYPASS 51MM DIAMETER BORE) SHOCK ABSORBERS

    The new BP-51 range of high performance, bypass shock absorbers is the result of an exhaustive development process aimed at delivering the ultimate in both comfort and control. Designed, developed and tested entirely in-house by ARB’s team of Old Man Emu ride engineers, BP-51 shock absorbers are vehicle-specific and utilize existing mounting locations to provide easy installation without the need for additional vehicle modification. Unlike most other adjustable shock absorbers, which provide adjustment for compression only, the BP-51 range allows on-vehicle, independent adjustability of both rebound and compression to offer class-leading ride customization that can be tailored to an individual vehicle or trip requirements.

    BYPASS TECHNOLOGY

    In addition to the velocity sensitive damping used in most shock absorbers, where the faster the piston moves, the higher the level of damping is generated, BP-51 shock absorbers also generate damping dependent on the position of the piston within the shock absorber’s body via their bypass design. While most shock absorbers only generate damping based on fluid flowing through the piston, the BP-51 offers an alternative path from one chamber to the other, around the piston in the form of bypass passages. Some fluid flows through the piston and some fluid bypasses around the piston in the bypass passages. This results in an ability for the shock absorber to provide the best of both worlds, with a comfortable and compliant ride during normal driving and a more controlled ride over more challenging terrain. With greater levels of damping generated at each end of the stroke, the piston slows as it approaches full compression and extension, preventing harsh topping out against the bump stop and allowing larger bumps and corrugations to be absorbed more easily.

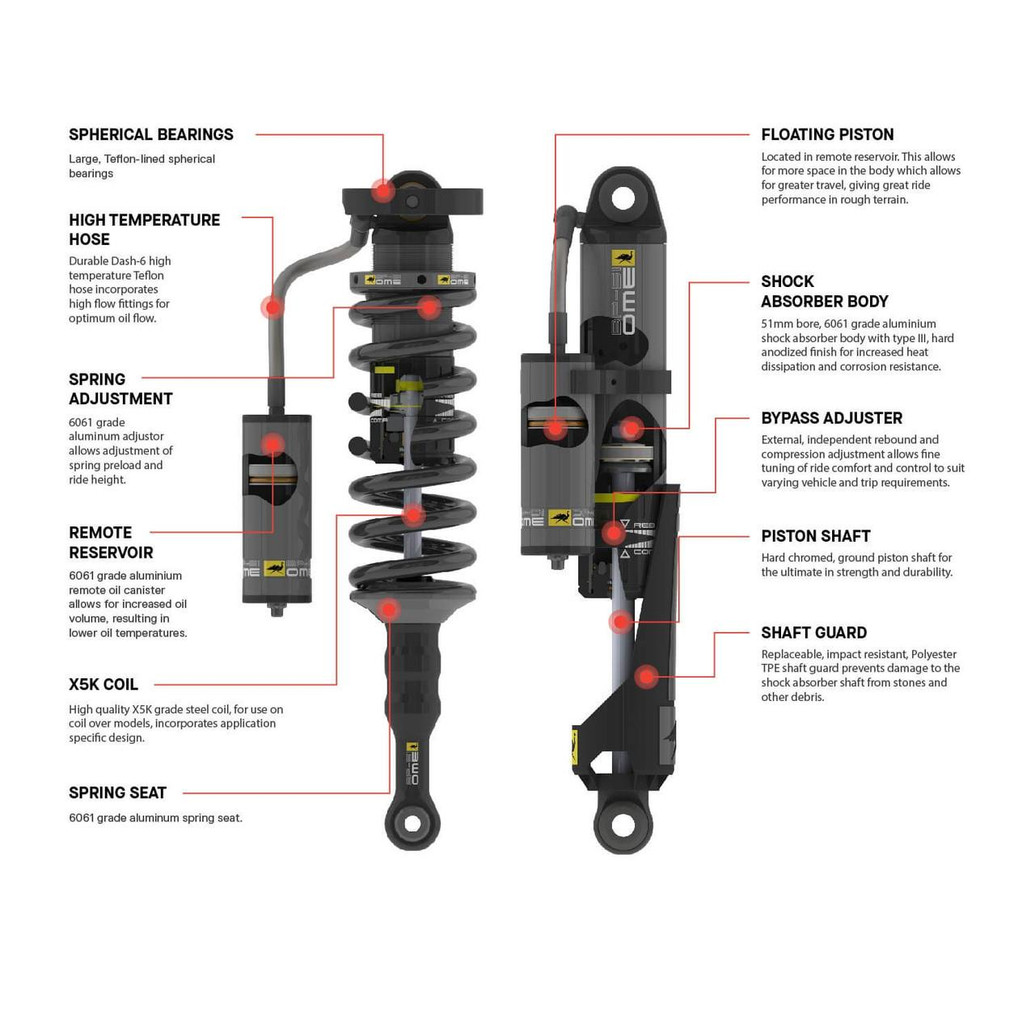

    Features

    BP51_Hero1

    REMOTE RESERVOIR

    6061 grade aluminum remote oil canister allows for increased oil volume, resulting in lower oil temperatures.

    HIGH TEMPERATURE HOSE

    Durable Dash 6 high-temperature Teflon hose incorporates high-flow fittings for optimum oil flow.

    SPHERICAL BEARINGS

    Large, Teflon-lined spherical bearings.

    SPRING SEAT

    6061 grade aluminum spring seat.

    X5K COIL

    High-quality X5K grade steel coil, for use on coil over models, incorporates application-specific design.

    SPRING ADJUSTMENT

    6061 grade aluminum adjustor allows adjustment of spring preload and ride height.

    TOP HAT

    6061 grade aluminum top hat.

    BUSHINGS

    Quality oversized rubber bushings result in excellent longevity.

    PIGGY BACK CLAMP

    Remote reservoir piggy back clamp allows easy connection of the remote oil reservoir to the main shock absorber body.

    SHAFT GUARD

    Replaceable, impact resistant, high-density polyethylene shaft guard prevents damage to the shock absorber shaft from stones and other debris.

    PISTON SHAFT

    Hard chromed, ground piston shaft for the ultimate in strength and durability.

    ADJUSTOR

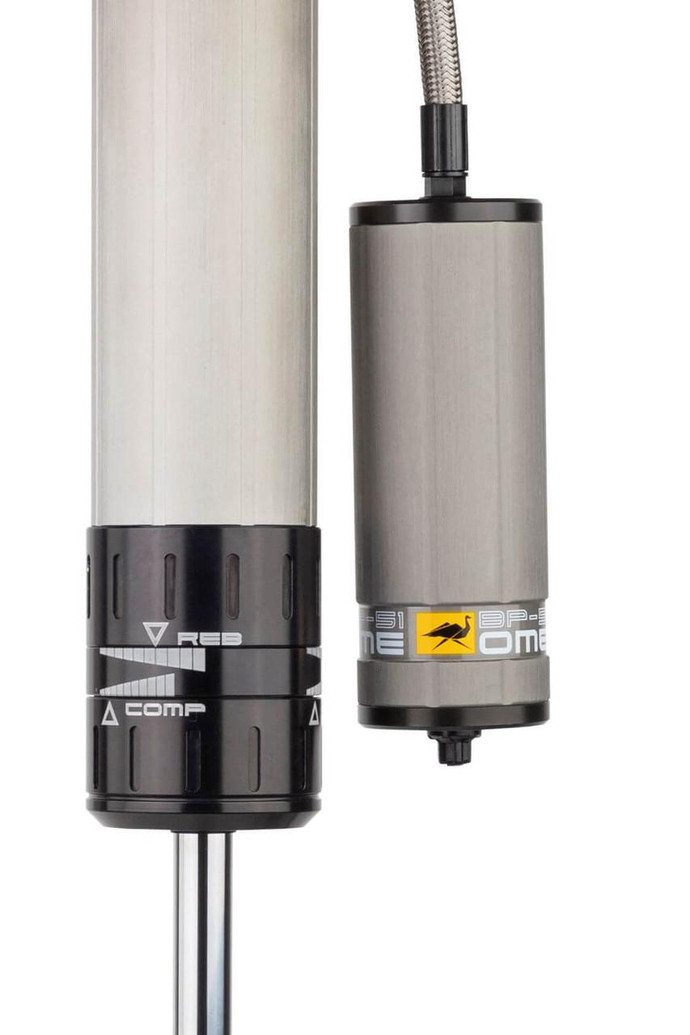

    External, independent rebound and compression adjustment allows fine tuning of ride comfort and control to suit varying vehicle and trip requirements.

    SHOCK ABSORBER BODY

    51mm bore, 6061 grade aluminum shock absorber body with type III, hard anodized finish for increased heat dissipation and corrosion resistance.

    14703-BP-51-SEMA-Brochure_v5

    DEVELOPMENT AND MANUFACTURING

    All BP-51 shock absorbers are manufactured in-house by ARB. In order to achieve this, significant investment has been made in state-of-the-art machining and hard anodising equipment, allowing ARB total control of the process to ensure the highest possible quality. BP-51 shock absorber bodies are manufactured using aircraft grade (6061) anodized aluminum to dissipate heat more efficiently than steel or alloy steel and provide superior corrosion resistance. Extensive lab, real world and destructive testing have been undertaken during the development process to ensure that reliability, longevity and performance all meet ARB’s impeccable standards.

    READ THE Y62 PATROL DEVELOPMENT

    Independently adjustable for both rebound and compression
