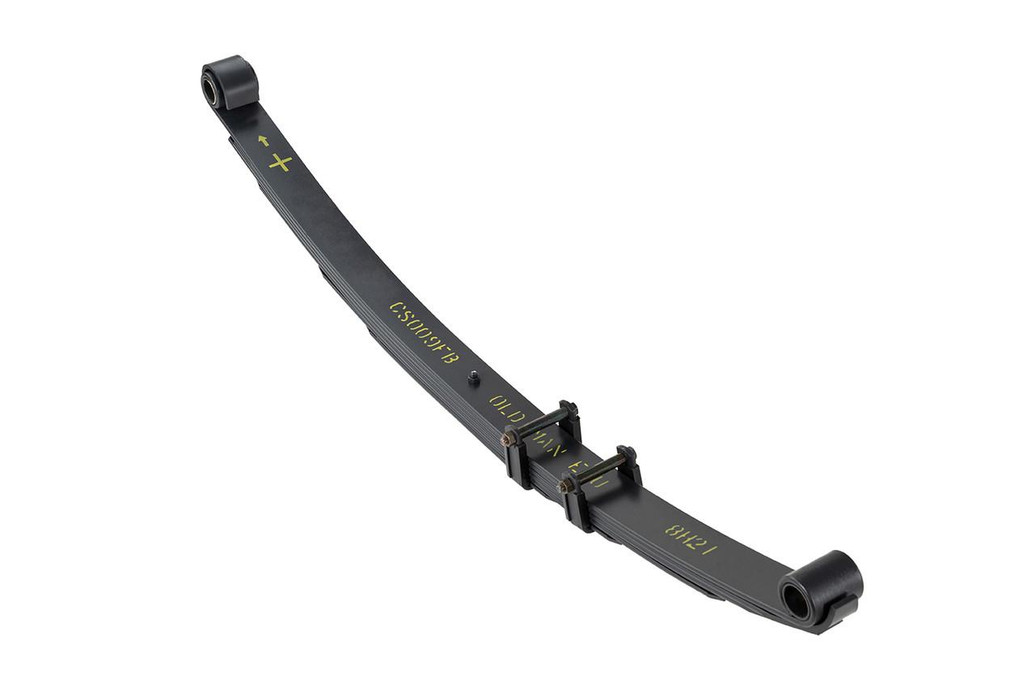

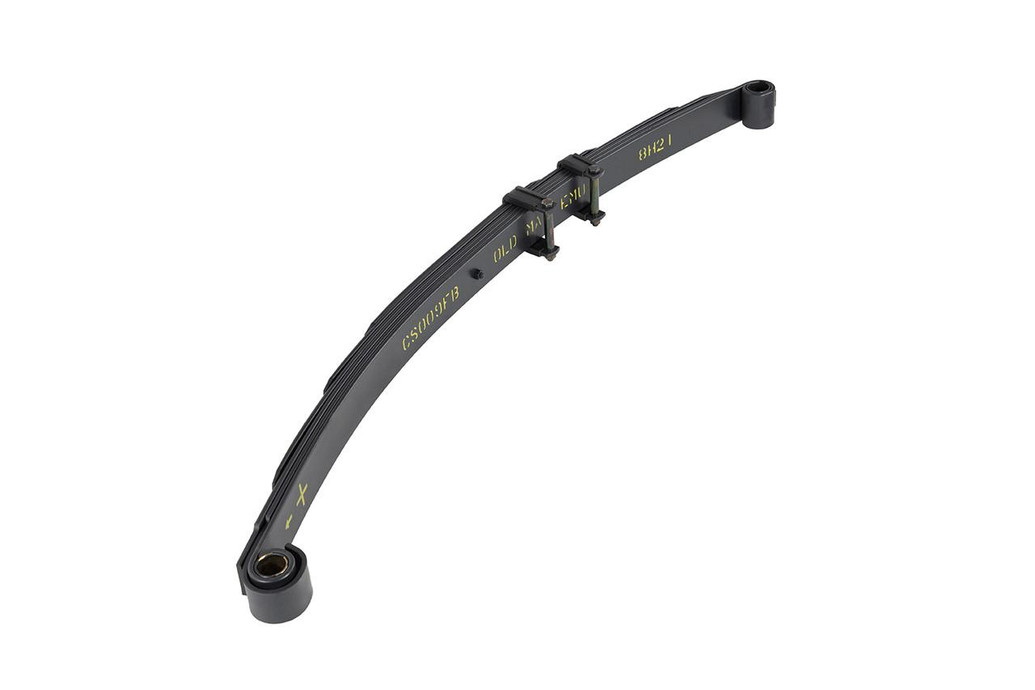

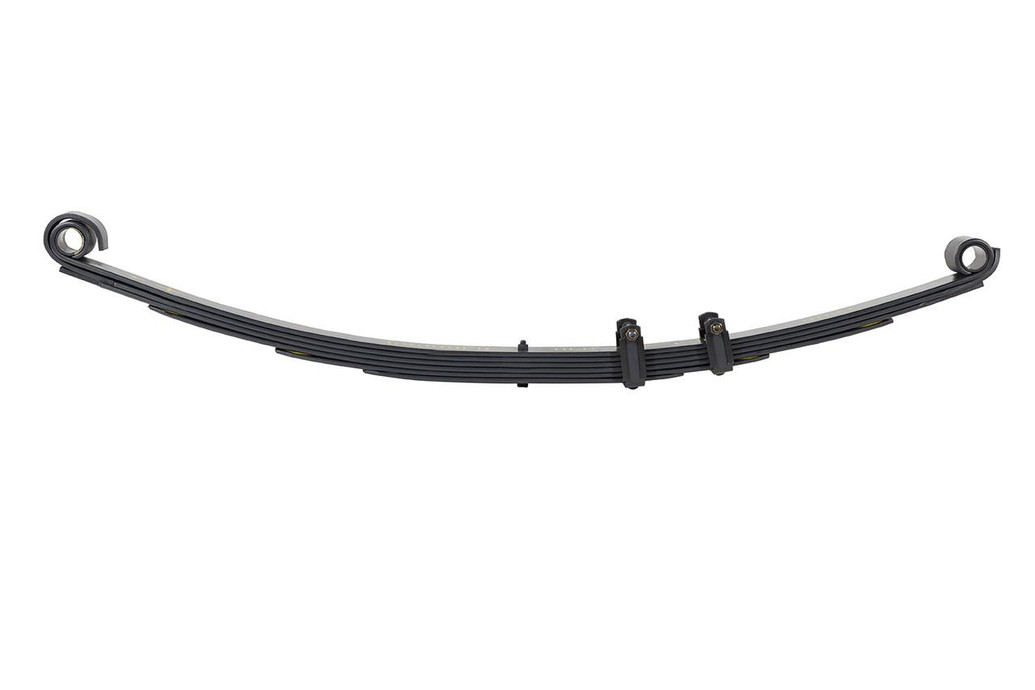

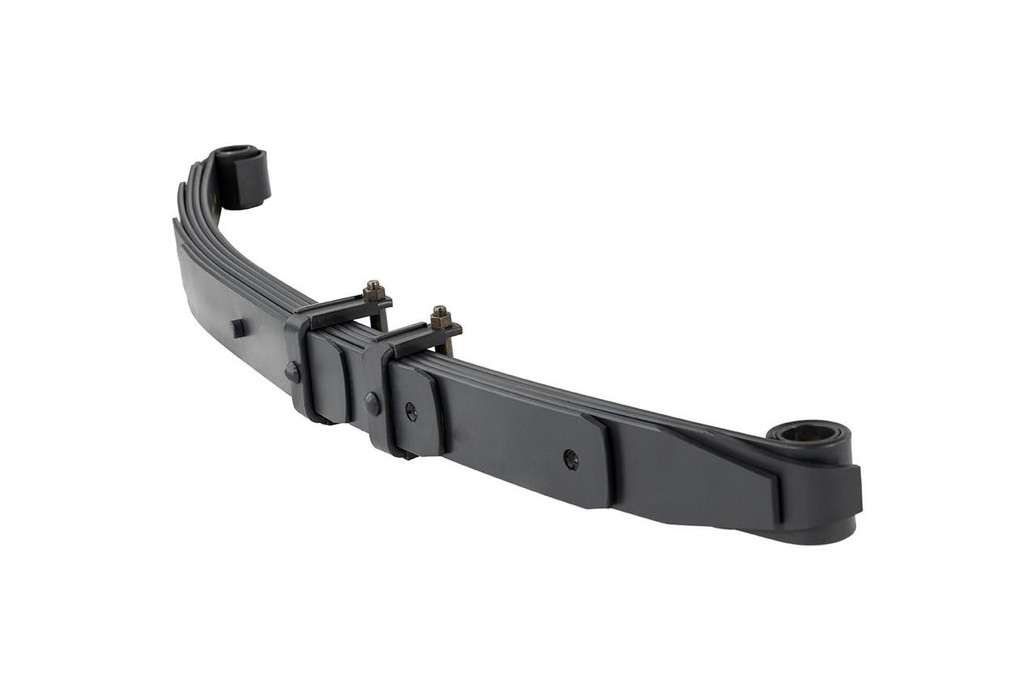

Front Leaf Spring CS009FB

Front Leaf Spring CS009FB Front Leaf Spring CS009FB Front Leaf Spring CS009FB Front Leaf Spring CS009FB
Front Leaf Spring CS009FB
Front Leaf Spring CS009FB
Front Leaf Spring CS009FB
Front Leaf Spring CS009FB
$140.00
|

Part Number: CS009FB

Size Chart
Verify Vehicle Fitment
Part of ARB's integrated 4X4 suspension systems, Emu Dakar leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions the vehicle's suspension is required to work under. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Emu Dakar leaf springs matched to a set of Old Man Emu 4X4 shock absorbers will deliver vastly improved ride, handling and load carrying capability. ;

Features & Benefits

  • Draw-tapered and diamond cut leaves
  • Bolted leaf clamps allow installation of anti-squeak nylon liners
  • Fully scragged to reduce the risk of sagging
  • Load tested to ensure the spring meets the required specification
  • Military wrap design provides added safety
  • Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
  • Flat axle seat area allows a positive, safe axle mount and reduces spring stress
  • Shot peened to reduce spring stress and increase spring life
  • Two-stage leaf pack featured on most rear springs for optimum comfort
  • Color Black
  • Weight 18.4 kg
  • Material Steel
  • CA Prop 65 No
  • Spring Rate 254 lbf/in
  • Eye Diameter 30 mm (F) / 30 mm (R)
  • Number Of Leaves 6
  • Primary Free Camber 150 mm
  • Prop 65 No
  • Warranty 3 YR
[{"Year":"1984-1985","Make":"Toyota","Model":"4Runner","Submodel":"DLX","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1984-1985","Make":"Toyota","Model":"4Runner","Submodel":"SR5","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1979-1980","Make":"Toyota","Model":"Pickup","Submodel":"Base","Liter":"2.2","CC":"2189","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1981-1985","Make":"Toyota","Model":"Pickup","Submodel":"Base","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1981-1983","Make":"Toyota","Model":"Pickup","Submodel":"DLX","Liter":"2.2","CC":"2188","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"2"},{"Year":"1979-1980","Make":"Toyota","Model":"Pickup","Submodel":"DLX","Liter":"2.2","CC":"2189","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1981-1985","Make":"Toyota","Model":"Pickup","Submodel":"DLX","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1984-1985","Make":"Toyota","Model":"Pickup","Submodel":"DLX","Liter":"2.4","CC":"2446","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"2"},{"Year":"1979-1980","Make":"Toyota","Model":"Pickup","Submodel":"SR5","Liter":"2.2","CC":"2189","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1981-1985","Make":"Toyota","Model":"Pickup","Submodel":"SR5","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1983","Make":"Toyota","Model":"Pickup","Submodel":"SR5","Liter":"2.2","CC":"2188","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"2"},{"Year":"1984","Make":"Toyota","Model":"Pickup","Submodel":"LN56","Liter":"2.4","CC":"2446","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"2"},{"Year":"1985","Make":"Toyota","Model":"Pickup","Submodel":"DLX Turbo","Liter":"2.4","CC":"2446","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"2"},{"Year":"1985","Make":"Toyota","Model":"Pickup","Submodel":"RN60","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"},{"Year":"1985","Make":"Toyota","Model":"Pickup","Submodel":"SR5 Turbo","Liter":"2.4","CC":"2366","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"2"}]
