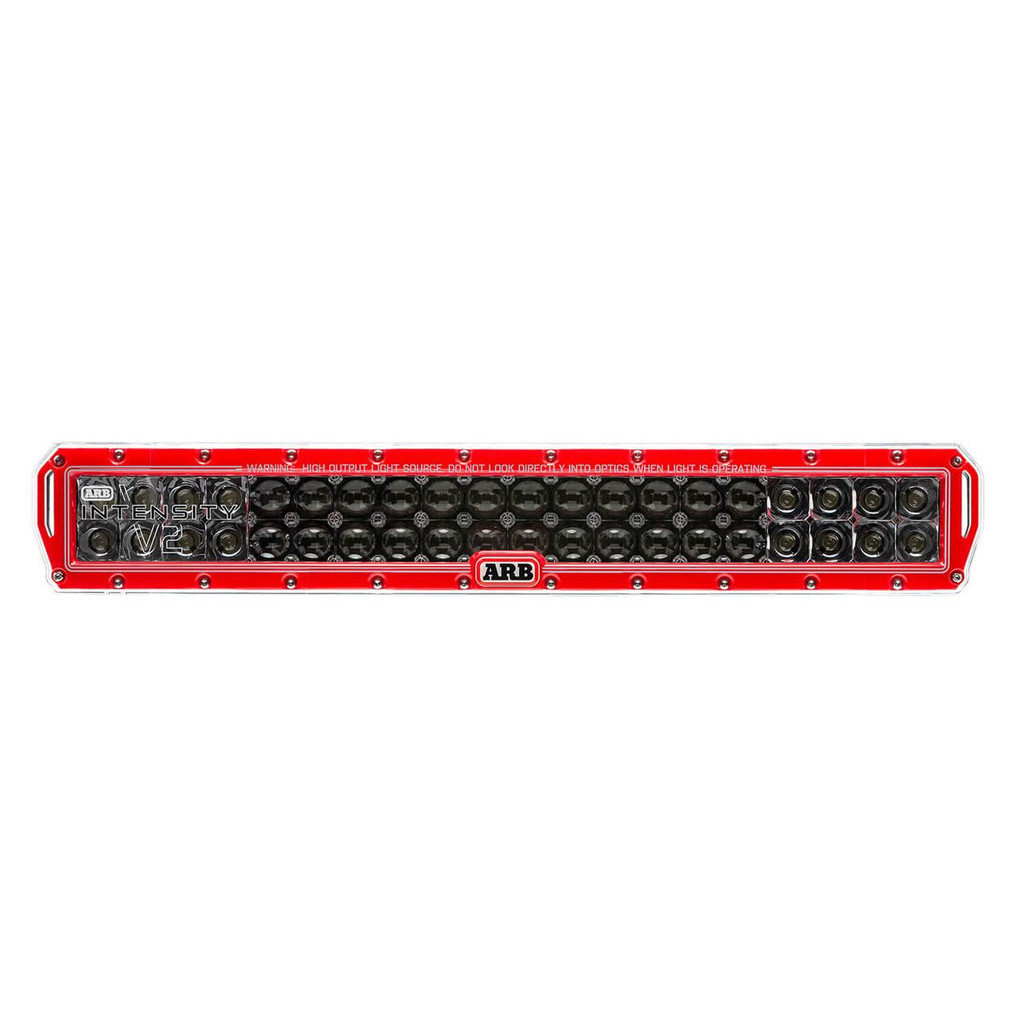

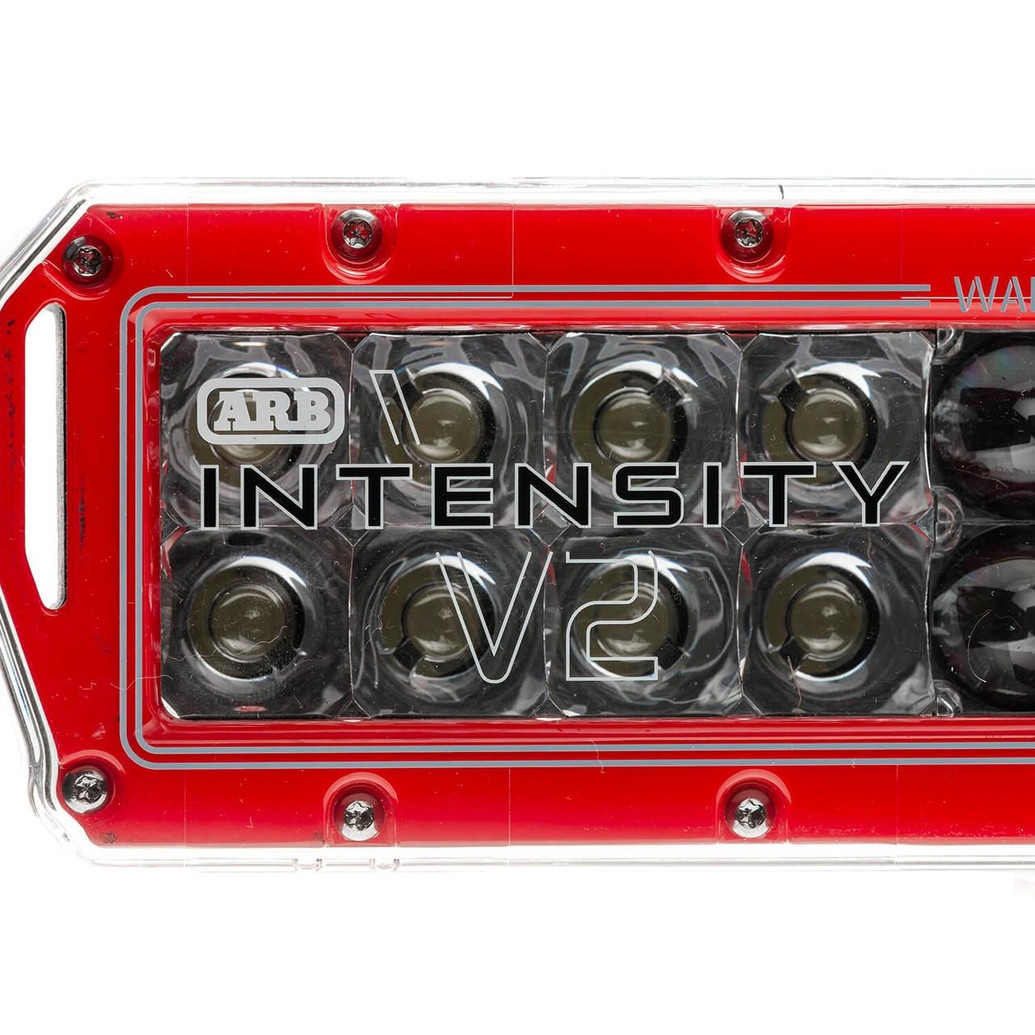

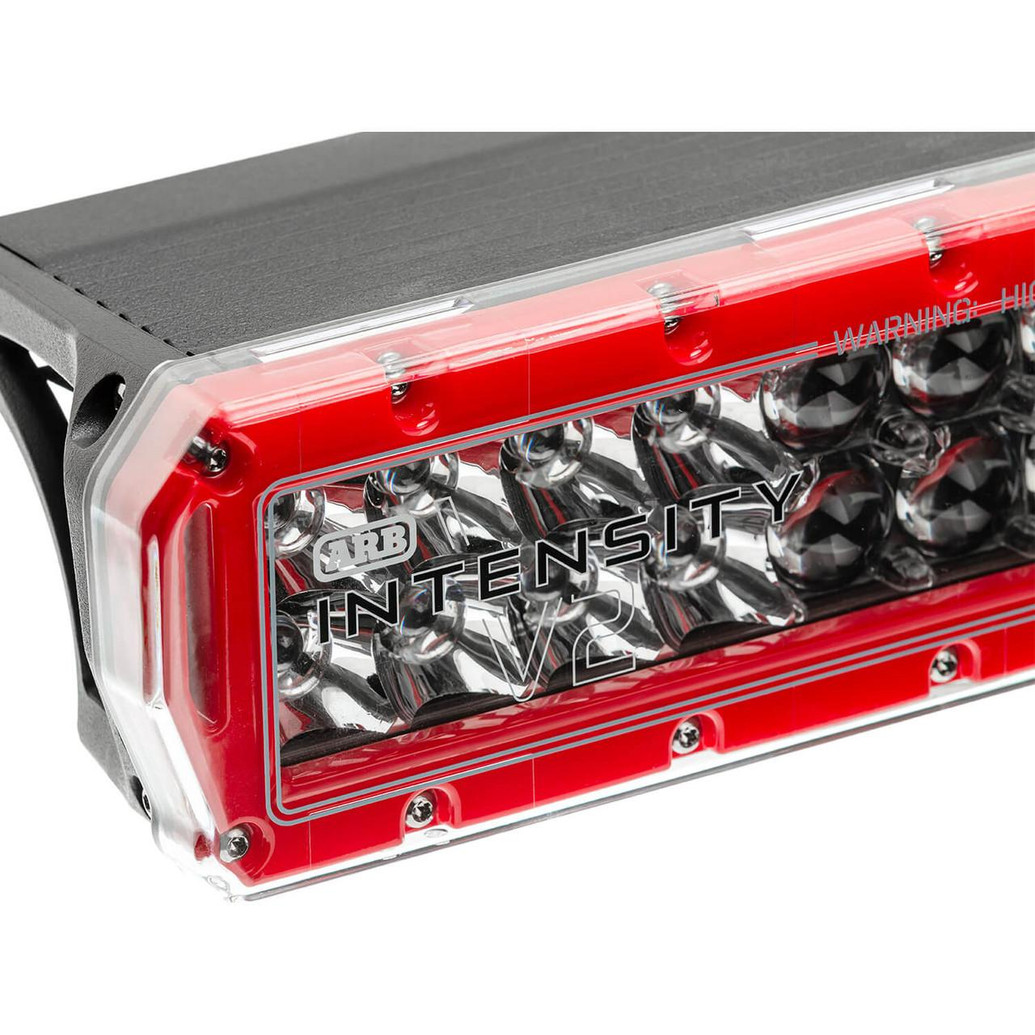

Intensity V2 Light Bar AR40CV2


Part Number: AR40CV2

Size Chart
The ARB Intensity V2 LED light bar utilizes Hyperspot optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs encased in a virtually indestructible polycarbonate lens and powder coated, extruded aluminum body with high-pressure die-cast end caps. Designed to integrate with the top tube of the bumper, the extruded alloy housing wraps around the tube, providing a low-profile integration with the bumper to maximize airflow to the cooling system and reduce obstructions. Its unique tube clamp mounting system sits out of view and delivers incredible stability for off-road use, eliminating vibration while being adjustable so that it won’t interfere with aerial mounting tabs. Performance is paramount, with a heat sink that allows the light bar to dissipate heat quickly and operate at optimum efficiency even when the vehicle is stationary or at low speed. ;

Features & Benefits

  • High output OSRAM square LED's
  • Powder-coated aluminum extruded body
  • Dimensions - 560mm (22.1 in) x 91mm (3.6 in) x 125mm (4.9 in)
  • 25,080 Raw Lumens for the AR40CV2 Combo.
  • 9-36 Volts operating
  • 305 watts of power
  • 21A @ 14.4V (Requires new looms)
  • 1 Lux @ 926m (3038ft)
  • 6 degree Spread for Spot and 20 degree spread for Flood
  • Input Cable Length 400mm (15.74 )
  • Operating Temp -40C to 63C (-40F to +145F)
  • Operating Temp -40C to 63C (-40?F to +145?F)
  • Weight 8.9lbs
  • Color Temp 5700k
  • Dimensions 22.1 in (L) X 3.6 in (H) X 4.9 in (H)
  • Output Raw Lumens 25,080 lumens
  • Operating Temperature From -40F to 145F
  • Lux 1 LUX @ 3,038ft
  • Watts 305 Watts
  • Spread 6 degrees spot/20 degrees flood
  • Prop 65 No
  • Warranty 3 YR
