$410.00
Part Number: MT64601009
ARB Warranty
45-Day Returns
Fast Shipping

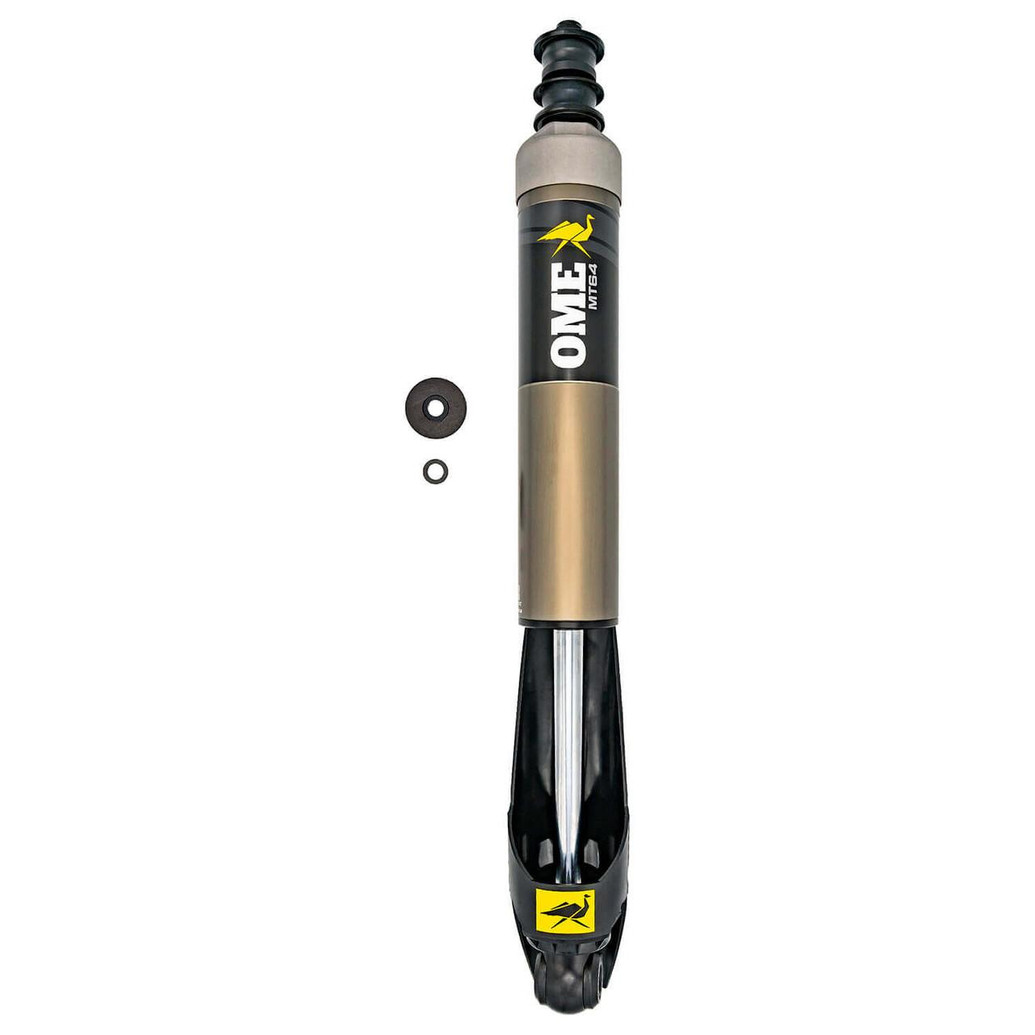

MT64 is specifically designed to cater to the needs of overland and heavy vehicles with extreme added weight, offering unparalleled load handling capabilities and vehicle-specific damping, tuned for different loads and vehicle setups. Multiple snap-ring grooves in the strut body allow for different spring seat positions, providing 0-3 inches of lift when paired with coil springs (application specific). These cutting-edge shocks are built to handle the unique challenges faced by vehicles equipped with campers, toppers, tents, and rack systems. These additions create a dynamic shifting load, both in terms of front-to-back and side-to-side movements. MT64 is the ultimate overlanding authority, designed for the traveler who wants a smooth ride and comfort both on and off-road. Overlanding demands shocks that can handle all conditions, day after day, and that is what MT64 is designed to do. ;
Features & Benefits
- Monotube with a massive 2.8 inch body allowing for more oil and accurate shock tuning
- Adjustable spring seat offers 0-3 inch of lift depending on the application
- Aerospace grade aluminum body dissipates heat fifteen times faster than steel, and increases protection against stone damage
- Forged body cap and rod ends reduce weight while maintaining strength
- Digressive valving instantly reacts to changing surface conditions to maximize performance
- Smooth controlled ride for everyday and long-distance driving to reduce fatigue and improve driver and passenger comfort
- Vehicle specific tuning
- Direct replacement for stock and aftermarket lift kit
- Color Gray
- Finish Type III Hard Anodized
- Material Aluminum
- CA Prop 65 No
- Lift Height 0-3 in
- Fitting Time 15 minutes
- Closed Length 15.4 in
- Type Shock
- Seals Independent wiper
- Bushes Natural rubber
- Design Monotube
- Valving Digressive
- Body Size 2.8 in
- Reservoir Internal
- Top Mount OEM
- Shaft Size 7/8 in
- Extended Length 23.5 in
- Lower Mount Type Eye
- Upper Mount Type Pin
- Compressed Length 15.4 in
- Adjustable Damping No
- Lower Mount Bush Kit VD50010045SP
- Upper Mount Bush Kit VM50010005SP
- Shaft Guard Replacement VD31010260SP
- Prop 65 No
- Warranty 3 YR
| Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
|---|---|---|---|---|---|---|---|
| 2023 | Toyota | 4Runner | 40th Anniversary Edition | 4 | 6 | GAS | 4 |
| 2010-2023 | Toyota | 4Runner | Limited | 4 | 6 | GAS | 4 |
| 2020-2021 | Toyota | 4Runner | Nightshade | 4 | 6 | GAS | 4 |
| 2010 | Toyota | 4Runner | SR5 | 2.7 | 4 | GAS | 4 |
| 2010-2023 | Toyota | 4Runner | SR5 | 4 | 6 | GAS | 4 |
| 2018-2023 | Toyota | 4Runner | SR5 Premium | 4 | 6 | GAS | 4 |
| 2010-2016 | Toyota | 4Runner | Trail | 4 | 6 | GAS | 4 |
| 2021 | Toyota | 4Runner | Trail | 4 | 6 | GAS | 4 |
| 2022 | Toyota | 4Runner | Trail | 4 | 6 | GAS | 4 |
| 2017-2023 | Toyota | 4Runner | TRD Off-Road | 4 | 6 | GAS | 4 |
| 2018-2023 | Toyota | 4Runner | TRD Off-Road Premium | 4 | 6 | GAS | 4 |
| 2015-2023 | Toyota | 4Runner | TRD Pro | 4 | 6 | GAS | 4 |
| 2022-2023 | Toyota | 4Runner | TRD Sport | 4 | 6 | GAS | 4 |
| 2020-2021 | Toyota | 4Runner | Venture | 4 | 6 | GAS | 4 |
| 2010-2014 | Toyota | FJ Cruiser | Base | 4 | 6 | GAS | 4 |
Recommended Products & Accessories
Product Highlights
RIDE REFINEMENT
MT64's massive 2.8 inch body allows more oil and better heat dissipation for a refined ride
DURABLE CONSTRUCTION
Aerospace grade aluminum dissipates heat effectively, while a 7/8" piston rod shaft delivers exceptional stability
ALL-AROUND COMFORT
Designed with a hydraulic end zone top out for added padding at full extension, compensating for unexpected bumps
ADJUSTABLE RIDE HEIGHT
An adjustable spring seat with six positions allows one coil spring to cater for differing accessory weight
Features
ADJUSTABLE SPRING SEAT FOR DIFFERENT LOADS
Adjustable spring seat with 6 positions in 5mm increments, allows for one coil spring to cater for different weight variations
REFINEMENT IN RIDE
The huge 64mm (2.5in) internal bore allows for more oil and bigger piston and shim stacks, to reduce heat providing more control through the stroke giving a more refined ride
DURABLE CONSTRUCTION
Utilising the same aerospace grade aluminium as our high-performance BP-51 to dissipate heat effectively
QUALITY FINISH
Covered with military spec hard anodised finish, the MT64 has superior corrosion resistance and can handle extreme temperatures
COMPREHENSIVE COMFORT
In addition to plush everyday comfort, MT64 is also designed with a hydraulic end zone top out, which provides added padding at the shock’s full extension, to compensate for any unexpected bumps
PRODUCED BY ARB
ARB's uncompromising Old Man Emu suspension team has designed, engineered and manufactured the MT64, giving you confidence in the quality
EVERYDAY IMPROVEMENT
Smooth, controlled ride for everyday and long-distance driving to reduce fatigue and general wear and tear on your vehicle’s components
INCREASED SIZE
MT64’s sizable shape makes it one of the biggest monotubes on the market, providing users with more of every aspect of the shock
DOUBLE BONDED RUBBER BUSHES
Providing unrivalled Noise, Vibration, Harshness (NVH) compliance, the bushes limit feedback to the driver through the suspension components. The natural rubber bushes provide a noise-free cushioned ride due to the softer finish and its ability to absorb bumps on the road
PISTON ROD
Equipped with a larger 22.5mm (7/8in) piston rod (shaft), the hard chrome finished rod provides improved strength and exceptional stability
WARRANTY
MT64 comes with the backing of ARB’s global support network, including a 3-year warranty which ensures you’ll go further for longer
FORGED ENDCAP
The expertly forged 6061 aluminium bodycaps provide increased strength to this solid shock, and also assist in dissipating heat to improve performance
SHAFT GUARD
Made from high density polyethylene, the shaft guard is designed to protect the shaft from stones and other debris and is also replaceable
MULTI-LIP COMBO SEAL
Reinforced with a resilient multi-lip combo seal which is designed to handle high pressure and shaft speeds, whilst also being made from a material that will handle a high temperature range
PROTECTIVE BUMP CAP
MT64 is sealed with a bump cap that utilises an integrated wiper seal, to guarantee the prevention of any dust, dirt and contaminant ingress
BIGGER BOLDER SMOOTHER
Overlanding demands shocks that can handle all conditions, day after day and that is what MT64 is designed to do. Its moniker derives from the internal monotube design using an enormous 64mm (2.5 in) inner bore diameter.
These cutting-edge shocks are built to handle the unique challenges faced by vehicles equipped with campers, toppers, tents, and rack systems. MT64 slots between the iconic Nitrocharger and the ultra-high-performance, adjustable BP-51 suspension offerings from Old Man Emu.
PUT TO THE TEST
What's it like to drive on MT64s? Harry Wagner took ARB's outfitted Tacoma to the Sweetwater Range in Northern California for a shake down and his report was favorable to say the least.
"The first thing we noticed was how well the MT64 shocks handled the weight over potholes and curves in the road. Plenty of rebound damping meant that the Tacoma felt settled and didn’t wallow around, even when fully loaded for the expedition... Whether slow speed crawling or carrying momentum over loose terrain, the MT64 shock absorbers offered a smooth ride. "
