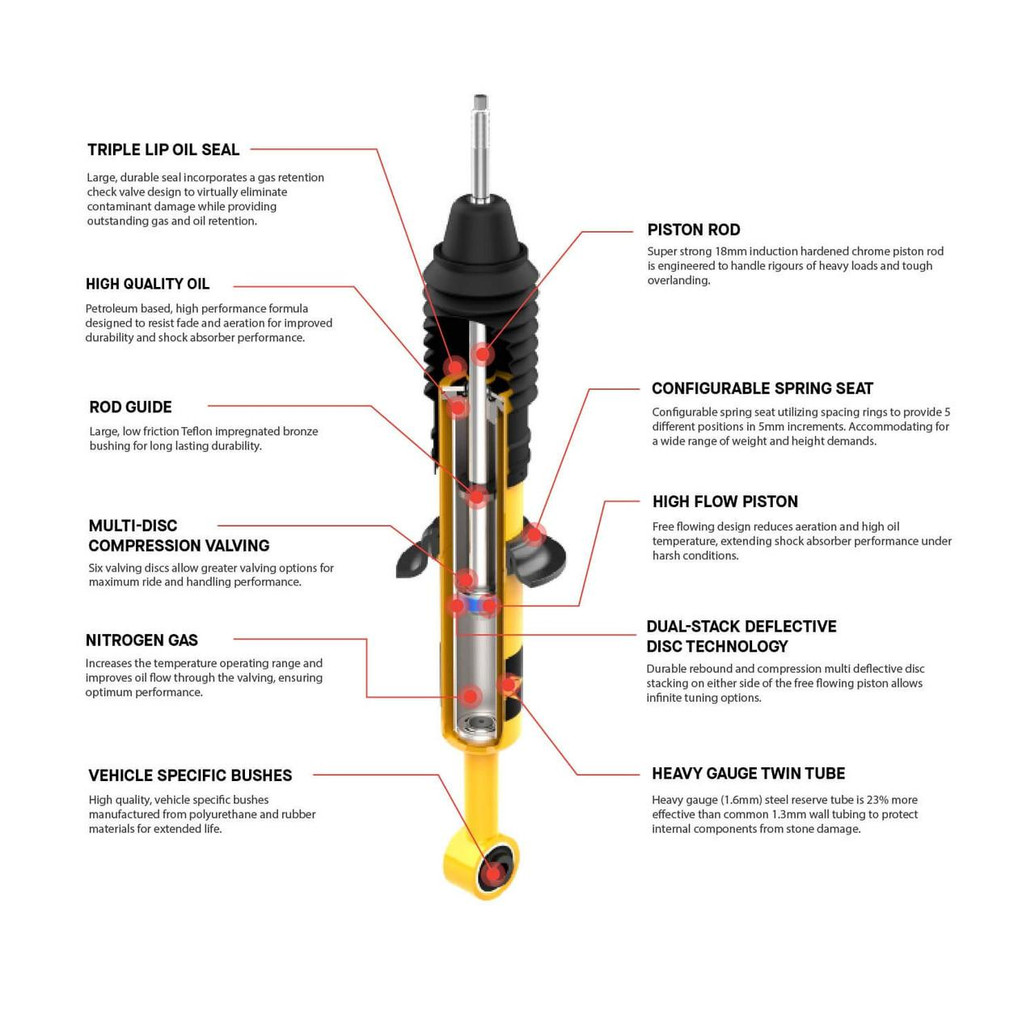

As the name suggests, the twin tube has a second internal tube inside the shock to separate oil and nitrogen gas. This is a proven technology that works very well but has its limitations around oil volume and tuning capability due to the piston and overall internal volume being smaller due to having to house a second tube. A monotube shock absorber is a single-body design, which utilizes a floating piston at the top of the shock body to separate the oil and nitrogen gas. This allows a much larger amount of oil to be inside the shock absorber, which not only limits the shock fade, but also increases the overall size of the piston. This increase gives our engineers a huge scope for tuning, allowing us to tune your vehicle perfectly.

Old Man Emu’s Ride Control Engineers spent countless hours designing and testing to ensure Nitrocharger Plus valving is precisely matched to an Old Man Emu coil spring selection that is right for the accessories fitted to your vehicle per your load requirements.

Testing is carried out both in the field with sophisticated data logging equipment and inside the Old Man Emu laboratory using shock dynamometers to ensure durability under all conditions. With Nitrocharger Plus vehicle-specific valving technology, owners will experience ride control and comfort on or off-road.

WHAT IS COMPRESSION AND REBOUND DAMPING?

Damping refers to the slowing of the shock absorber’s oscillation. This is controlled by a series of valves that slow the movement of the hydraulic fluid through the piston. Valving controls the movement of the pistons both during compression and rebound strokes.

WHAT EFFECT WILL THESE ADJUSTMENTS HAVE ON A VEHICLE?

Adjusting the compression valves affects how comfortable or firm the suspension is when the suspension of the vehicle compresses. Too firm and the vehicle will feel every bump and ripple in the road surface as the shock tries to prevent the spring from freely compressing. Too soft and the ride will become more comfortable, however, more body roll can be felt when tackling corners and the vehicle may nose dive during braking, resulting in less control. The suspension may also easily bottom out on the bump stops.

Adjusting rebound valving impacts the rate at which the shock allows the spring to return to ride height once it has been compressed. Higher rate springs are used to maintain correct ride height when either accessories or greater constant loads are added to the vehicle. When these springs are compressed with greater load, the energy stored within the spring is also greater and requires extra damping control as it rebounds. Not enough rebound control may cause the shock absorber to top out, causing internal damage to the shock, or allow the suspension to bounce numerous times after hitting an obstacle, resulting in less control of the vehicle.

• You want an affordable upgrade because the OE suspension isn't up to the task.
• You want a general suspension improvement over OE.
• You have general needs like a lift, carrying heavy weights, better vehicle control, better ride, and improved driveability.
• You want a choice between light, medium, and heavy-duty shocks, with three to four spring options.
• You want a set-and-forget set-up. Fit it once and forget about it.
• Reliable and dependable.

• You're happy to spend a bit more to get improved all-round performance.
• You want all-round comfort in all conditions.
• The vehicle is your daily driver. It doubles as an overland vehicle for extended trips.
• You want the shocks to keep performing when the going gets tough.
• You want a choice between light. medium and heavy-duty shocks, with three to four spring options.
• You're after a set-and-forget suspension.
• Premium materials and a sleek look.
• Adjustable pre-load springs to cater to changing your setup

• You want the best of the best.
• You want increased control over unexpected events.
• You want comfort and control at speed, customization, and adjustment.
• You need adaptability from on-road to off-road and the ability to tune and adjust the shocks yourself.
• You want long-travel suspension for the most extreme terrain.
• You tend to seek out the harshest and most remote terrains.
• You want a shock that can best handle temperature extremes.
• Adjustable pre-load springs to cater to changing your setup.
