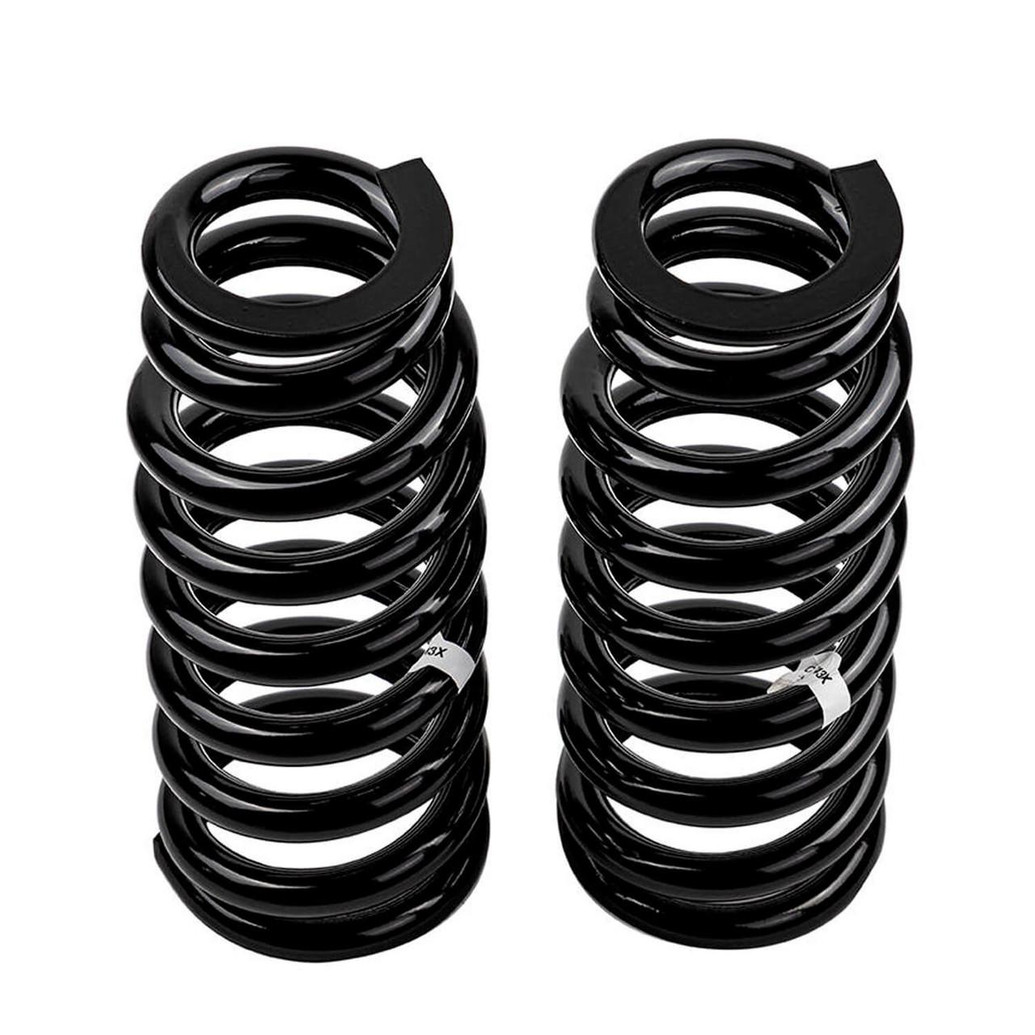

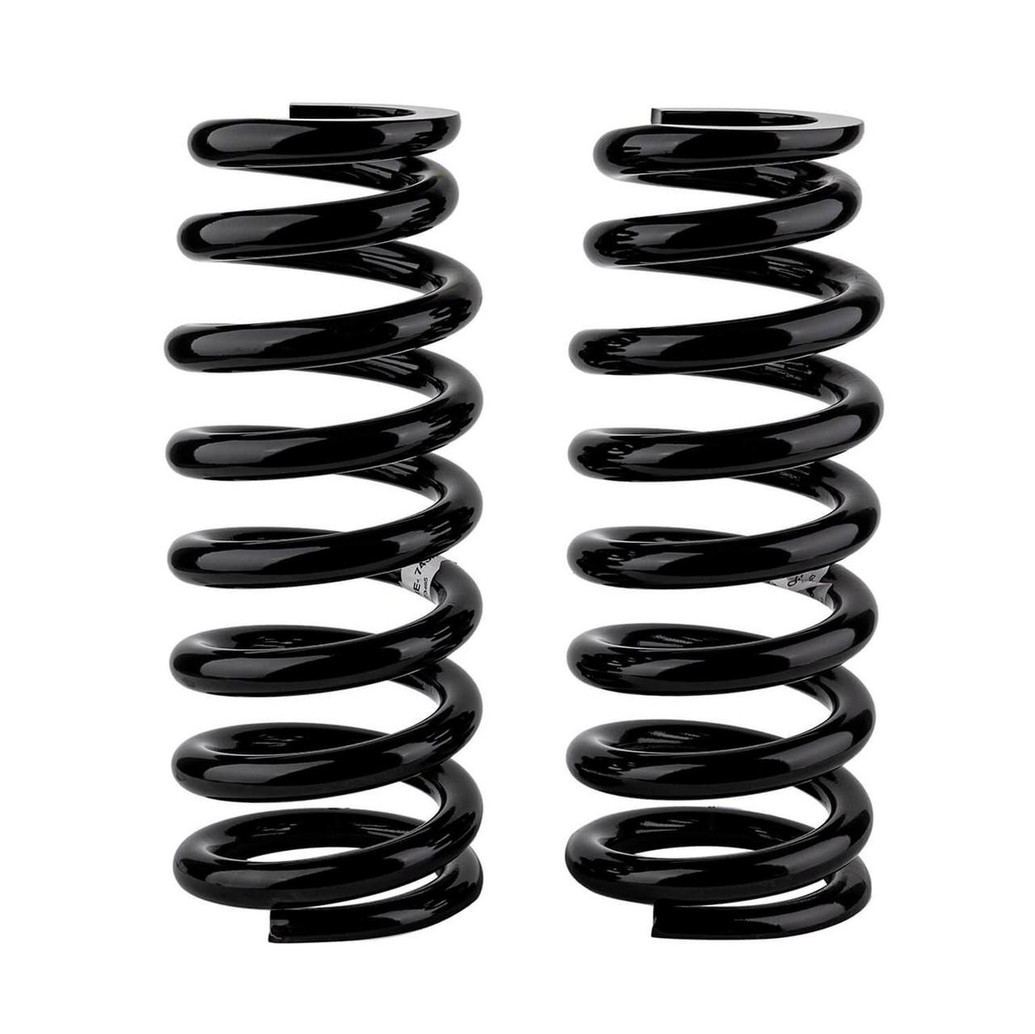

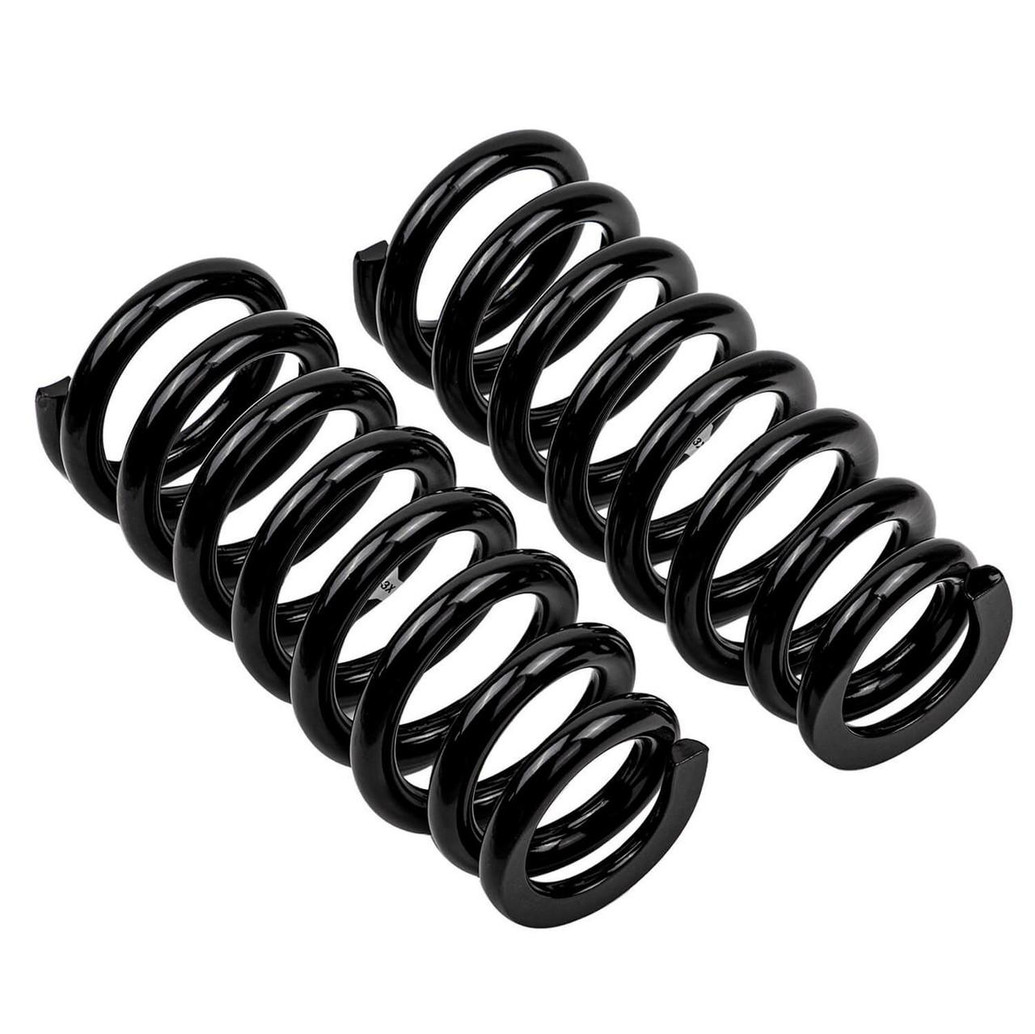

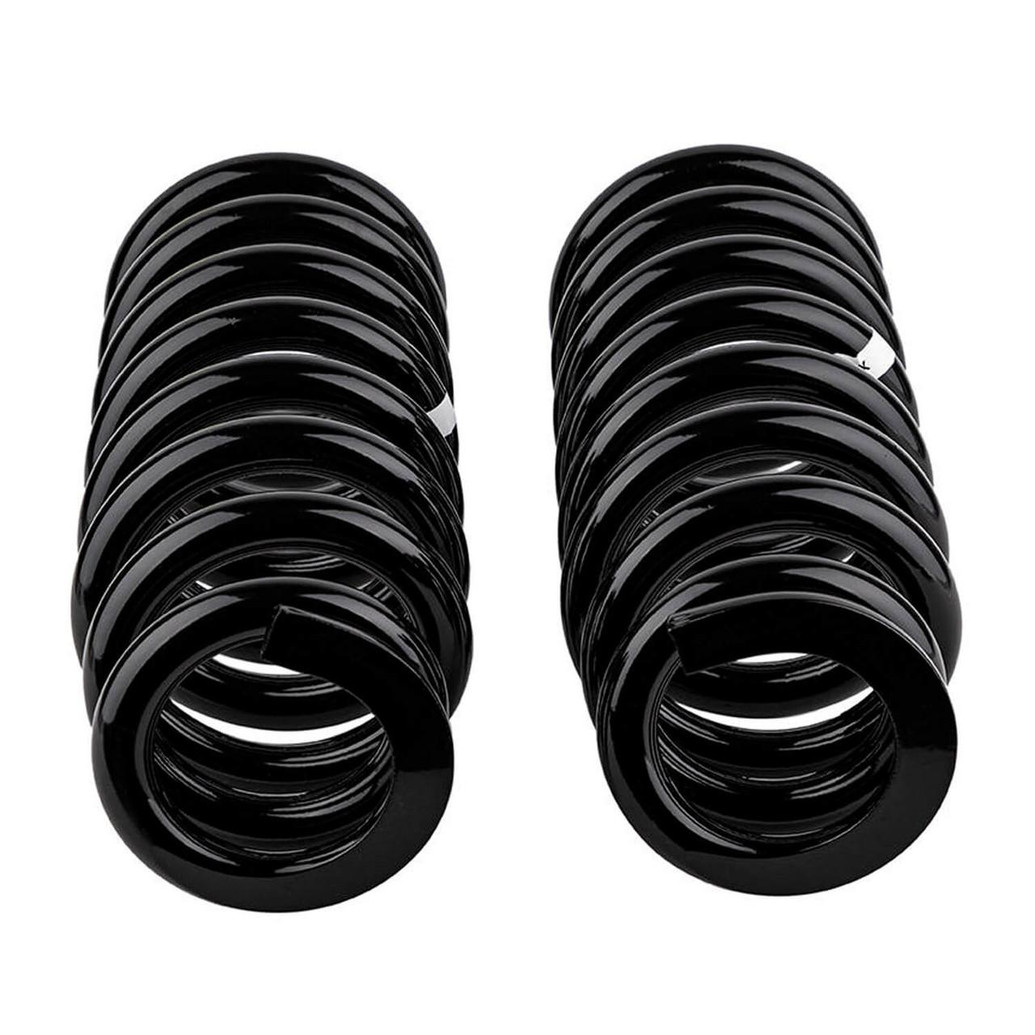

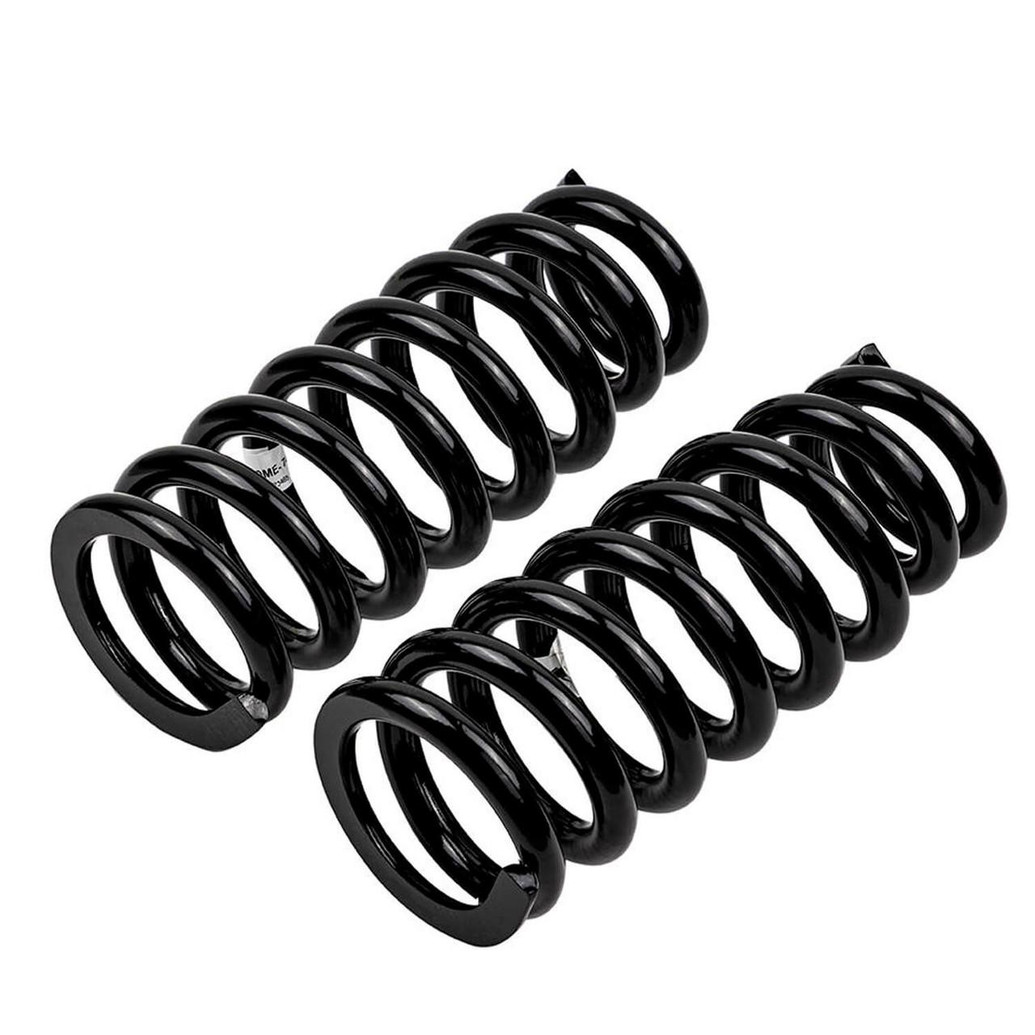

Rear Coil Spring Set 2743

Rear Coil Spring Set 2743 Rear Coil Spring Set 2743 Rear Coil Spring Set 2743 Rear Coil Spring Set 2743 Rear Coil Spring Set 2743
Rear Coil Spring Set 2743
Rear Coil Spring Set 2743
Rear Coil Spring Set 2743
Rear Coil Spring Set 2743
Rear Coil Spring Set 2743
$234.95
|

Part Number: 2743

Size Chart
Verify Vehicle Fitment
When undertaking 4X4 remote area travel, the need to carry sufficient fuel, water, vehicle spares and safety equipment invariably means that your 4WD will be fully loaded, placing a lot of strain on suspension components. As part of their integrated 4WD suspension systems, Old Man Emu designs a range of coil springs for each vehicle, enabling the installer to match the most appropriate springs to the intended application. While ride height increases are attained, emphasis is placed on ride control improvements. Further fine tuning is achieved when the springs are matched to a corresponding set of Old Man Emu shock absorbers, delivering a fully integrated system designed specifically to suit your vehicle. ;

Features & Benefits

  • Manufactured micro-alloyed spring steel for strength & durability
  • Double scragged to reduce spring stress and enhance spring life
  • Constant variable rate coils available for multiple applications
  • Formed on computer-precision mandrels to ensure consistency
  • Designed to exact specifications, guaranteeing vehicle fitment
  • Finished in durable, hard wearing black powder coat
  • Designed and manufactured in Australia
  • Color Black
  • Material X5K Micro-Alloyed Spring Steel
  • CA Prop 65 No
  • Coil Weight 8.7 kg
  • Free Height A: 360 mm / B: 360 mm
  • Spring Rate 800 lbf / in
  • Bar Diameter 21 mm
  • Number Of Turns 8.6
  • OE Spring Rate 600 lbs
  • Prop 65 No
  • Warranty 3 YR
[{"Year":"2005-2009","Make":"Land Rover","Model":"LR3","Submodel":"HSE","Liter":"4.4","CC":"4394","Block type":"V","Cylinders":"8","Fuel type":"GAS","Doors":"4"},{"Year":"2005-2009","Make":"Land Rover","Model":"LR3","Submodel":"SE","Liter":"4","CC":"-","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2005-2009","Make":"Land Rover","Model":"LR3","Submodel":"SE","Liter":"4.4","CC":"4394","Block type":"V","Cylinders":"8","Fuel type":"GAS","Doors":"4"},{"Year":"2006","Make":"Land Rover","Model":"LR3","Submodel":"Base","Liter":"4","CC":"-","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2009","Make":"Land Rover","Model":"LR3","Submodel":"HSE Lux","Liter":"4.4","CC":"4394","Block type":"V","Cylinders":"8","Fuel type":"GAS","Doors":"4"}]
