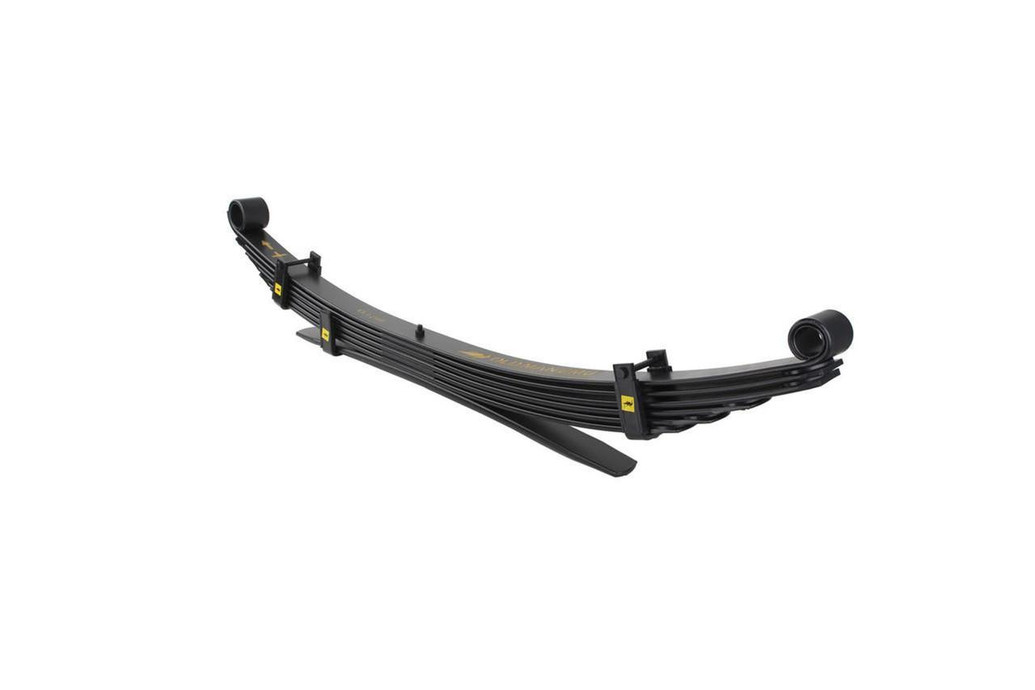

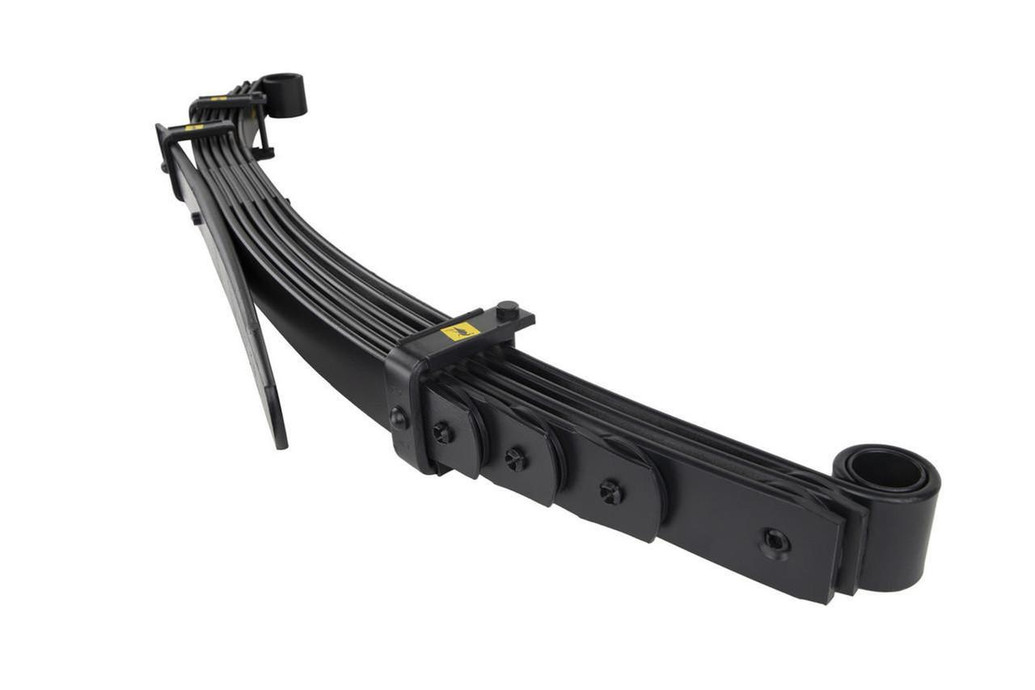

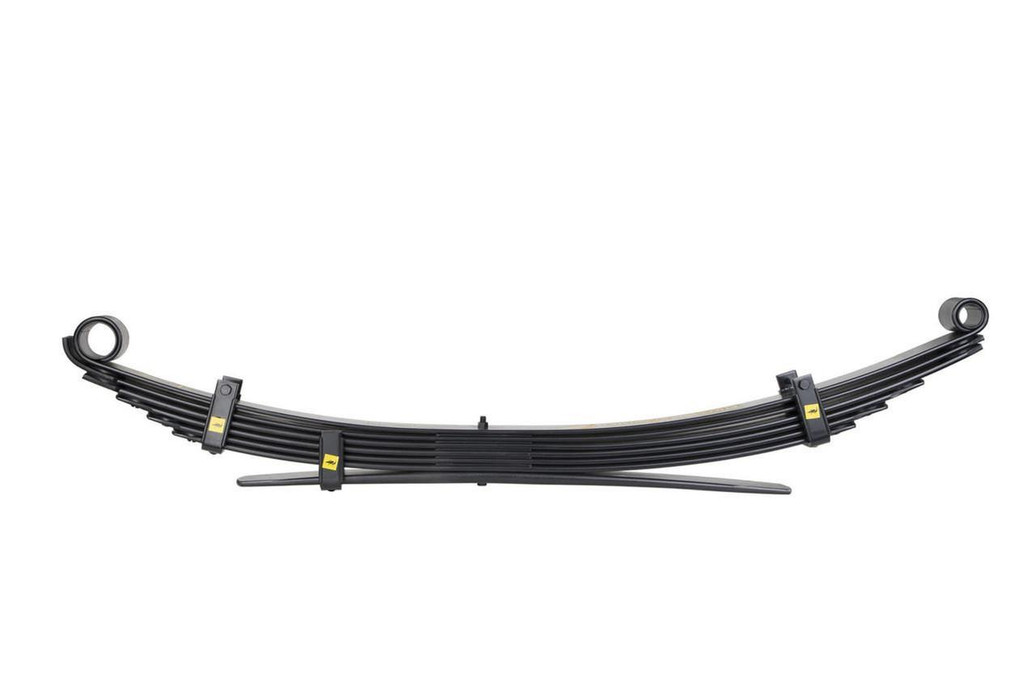

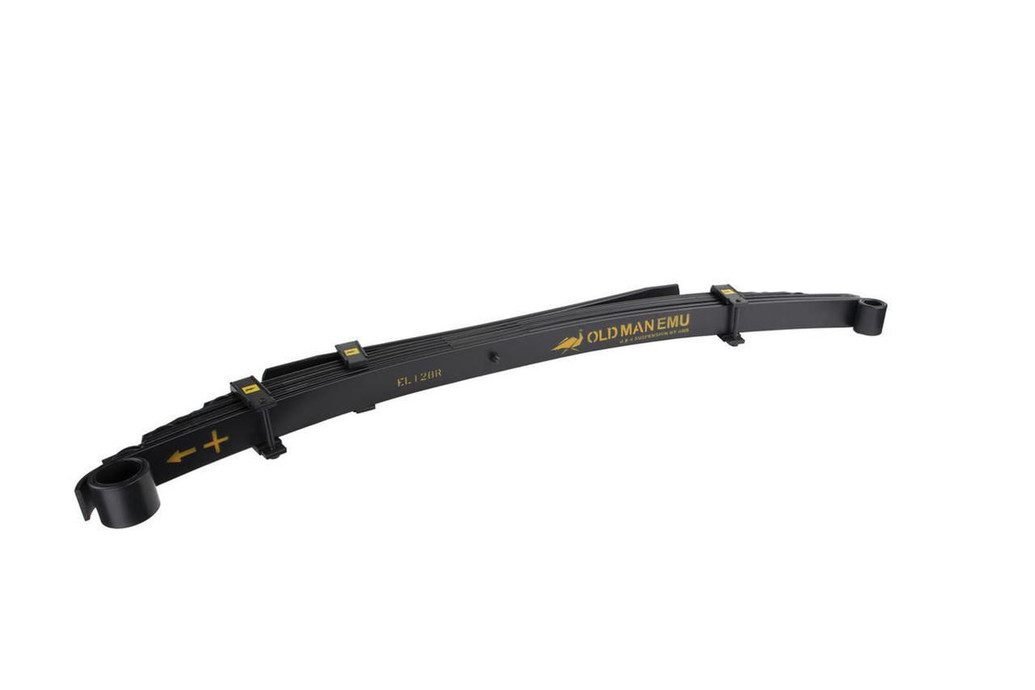

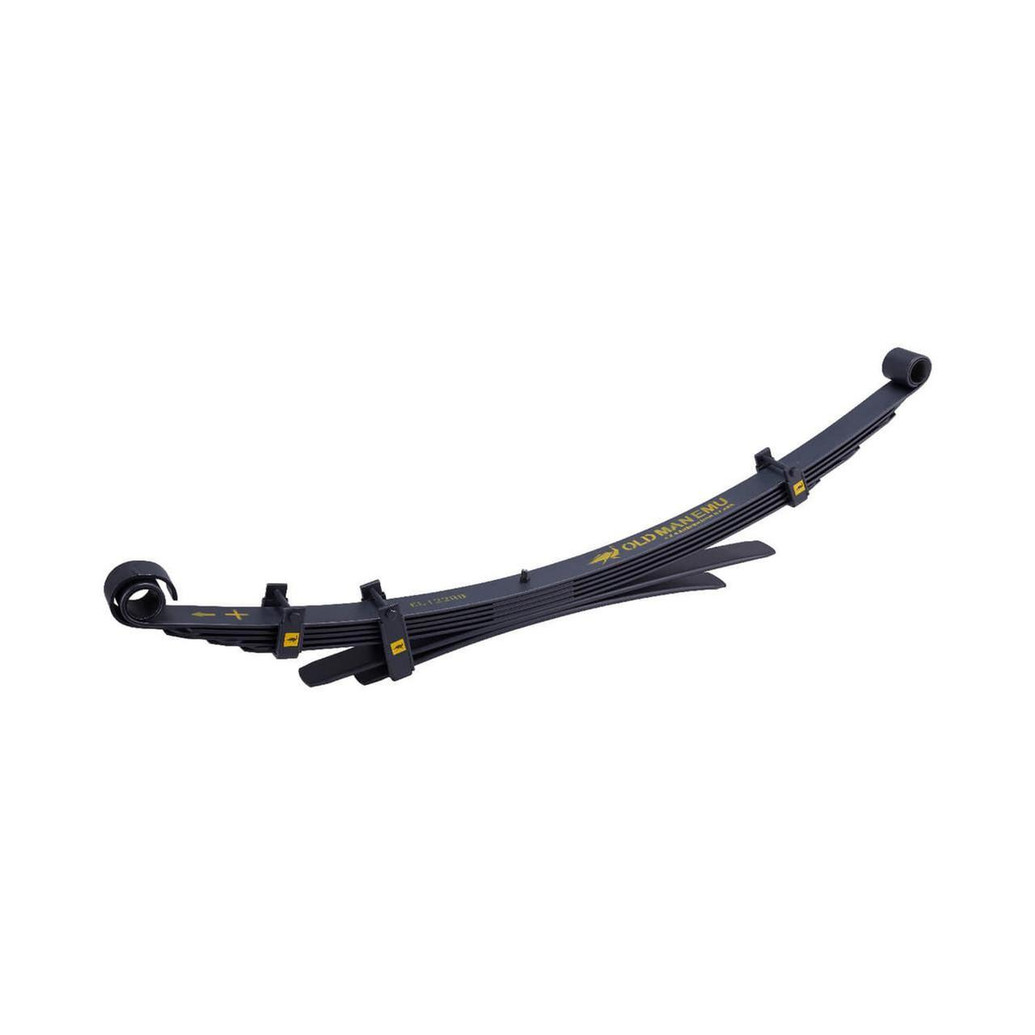

Rear Leaf Spring EL121R

$311.00
|

Part Number: EL121R

Size Chart
Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the operating conditions in which they operate. Numerous spring options are available to suit a multitude of applications, allowing you to set your vehicle up for recreational or commercial purposes. Feature packed, a set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4?4 shock absorbers will deliver vastly improved ride, handling and load carrying capability. ;

Features & Benefits

  • Draw-tapered and diamond cut leaves
  • Bolted leaf clamps allow installation of anti-squeak nylon liners
  • Fully scragged to reduce the risk of sagging
  • Load tested to ensure the spring meets the required specification
  • Military wrap design provides added safety
  • Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
  • Flat axle seat area allows a positive, safe axle mount and reduces spring stress
  • Shot peened to reduce spring stress and increase spring life
  • Two-stage leaf pack featured on most rear springs for optimum comfort
  • Color Black
  • Weight 23.7 kg
  • Material Steel
  • CA Prop 65 No
  • Spring Rate 213 / 558 lbf/in
  • Eye Diameter 50 mm (F) / 32.7 mm (R)
  • Number Of Leaves 4+1
  • Primary Free Camber 231 mm
  • Prop 65 No
  • Warranty 3 YR
[{"Year":"2019-2022","Make":"Ford","Model":"Ranger","Submodel":"XL","Liter":"2.5","CC":"2488","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2019-2022","Make":"Ford","Model":"Ranger","Submodel":"XLT","Liter":"2.5","CC":"2488","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2019-2022","Make":"Ford","Model":"Ranger","Submodel":"XLT","Liter":"3.2","CC":"-","Block type":"L","Cylinders":"5","Fuel type":"DIESEL","Doors":"4"},{"Year":"2021-2022","Make":"Ford","Model":"Ranger","Submodel":"XLT Plus","Liter":"2.5","CC":"2488","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2019-2023","Make":"Ford","Model":"Ranger","Submodel":"Lariat","Liter":"2.3","CC":"2300","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2023","Make":"Ford","Model":"Ranger","Submodel":"Raptor","Liter":"3","CC":"2956","Block type":"V","Cylinders":"6","Fuel type":"GAS","Doors":"4"},{"Year":"2019-2023","Make":"Ford","Model":"Ranger","Submodel":"XL","Liter":"2.3","CC":"2300","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2019-2023","Make":"Ford","Model":"Ranger","Submodel":"XLT","Liter":"2.3","CC":"2300","Block type":"L","Cylinders":"4","Fuel type":"GAS","Doors":"4"},{"Year":"2021","Make":"Ford","Model":"Ranger","Submodel":"XLT","Liter":"2.2","CC":"2198","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"4"},{"Year":"2022","Make":"Ford","Model":"Ranger","Submodel":"XL","Liter":"2.2","CC":"2198","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"4"},{"Year":"2022","Make":"Ford","Model":"Ranger","Submodel":"Raptor","Liter":"2","CC":"1995","Block type":"L","Cylinders":"4","Fuel type":"DIESEL","Doors":"4"}]

Product Highlights
