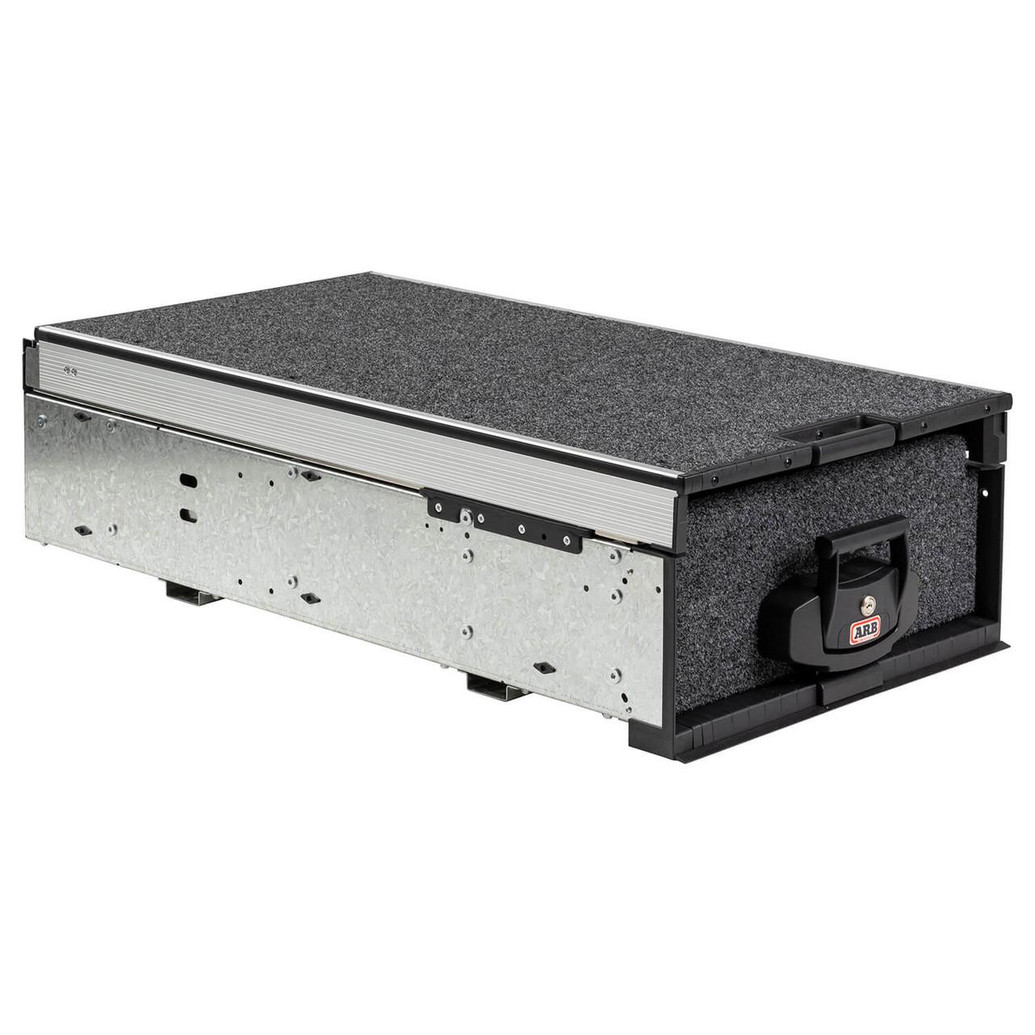

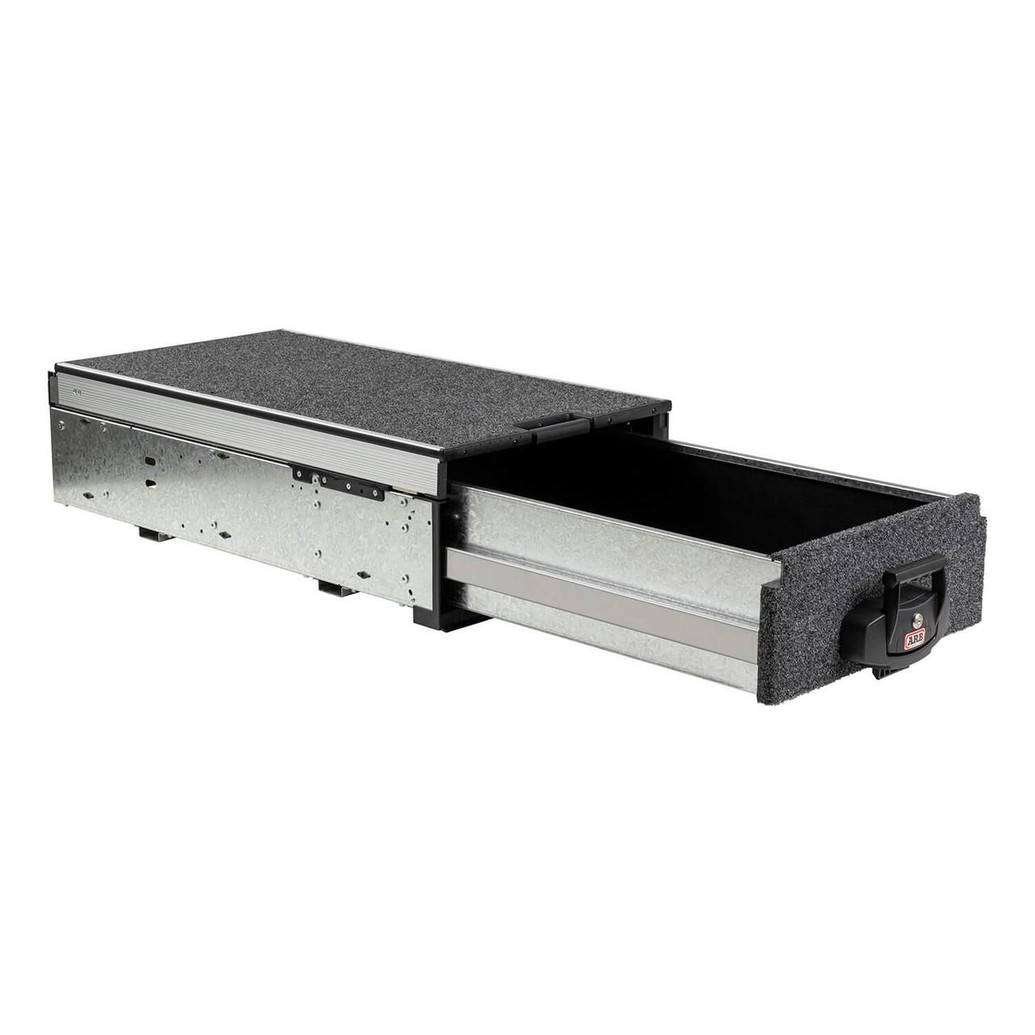

Roller Drawer with Roller Floor RDRF945
$1,161.00
Shop Your Vehicle
My Garage
Submit
Reset
$1,250.00
Part Number: RDRF1045
ARB Warranty
45-Day Returns
Fast Shipping
Roller Floor is a fantastic new product. The Roller Floor sits only 140 mm off the vehicle floor, enabling lower mounting and easier access to items such as fridges or tool boxes. The Roller maximizes storage space with an incorporated slide out tray. When not housing a refrigerator, the Roller Floor has a flat top thats far more convenient to sit other items on than a traditional steel fridge slide. Ever tried to sit your groceries on top of a traditional fridge slide? ;
Features & Benefits
- Engineered for both on and off-road driving with anti-rattle design
- Self-locking anti roll back system locks into place at full extension, this holds the drawer from rolling closed even on inclines
- Modular units allow greater flexibility if needs change in the future
- Class leading deep drawers with internal heights up to 9.8 inches for greater packing potential
- Key lockable, push-pull slam shut latches for ease of use and maximum security
- Long lasting, UV stable commercial carpet designed to complement modern vehicle interiors
- Cross folded floor ensures maximum support for items placed within each unit. Up to a Maximum of 330lbs per drawer, 600lbs combined
- Fully Sealed, Dust and water resistant bearings for superior longevity working in harsh environments
- Integrated fridge slides on roller floor models provides a true flat mounting surface
- Vehicle specific side floor kit with easy latches completes installation and provides additional storage areas within the cabin or tray
- Water resistant bonded marine plywood with steel reinforced guards for superior strength sourced from sustainable forests
- Folded stainless steel bearing runners for ultra-smooth drawer and slide operation
- Prop 65 No
- Color Gray
- Weight 88.8 lb
- Material Steel
- Load Rating 220 lb per drawer, roll top 220 lb closed, 165 lb extended
- Internal Dimensions 37.4 in H x 18.3 in W x 8.7 in H
- External Dimensions 41.1 in H x 21.1 in W x 11 in H
- Warranty 3 YR
| Year | Make | Model | Submodel | Liter | Cylinders | Fuel type | Doors |
|---|---|---|---|---|---|---|---|
| 2008-2011 | Toyota | Land Cruiser | Base | 5.7 | 8 | GAS | 4 |
| 2014-2021 | Toyota | Land Cruiser | Base | 5.7 | 8 | GAS | 4 |
| 2020-2021 | Toyota | Land Cruiser | Heritage Edition | 5.7 | 8 | GAS | 4 |
| 2008-2011 | Toyota | Land Cruiser | VX | 5.7 | 8 | GAS | 4 |
| 2014-2016 | Toyota | Land Cruiser | VX | 5.7 | 8 | GAS | 4 |
| 2017-2021 | Toyota | Land Cruiser | VX-R | 5.7 | 8 | GAS | 4 |
| 2013 | Toyota | Land Cruiser | Base | 5.7 | 8 | GAS | 4 |
| 2013 | Toyota | Land Cruiser | VX | 5.7 | 8 | GAS | 4 |
Recommended Products & Accessories
Roller Drawer with Roller Floor RDRF1355
$1,447.00
Roller Drawer with Roller Floor RDRF790
$1,563.00
Roller Floor Drawer RF1045
$866.00
Product Highlights
ARB MODULAR ROLLER DRAWER SYSTEMS
The Modular Roller Drawer Systems range, provides off-roaders with an extremely versatile selection of products to suit a wide variety of uses. The range consists of modules across three styles. Modules can be mounted in various combinations, including individually, side by side and vertical. This system also provides flexibility to change, rearrange or add modules and accessories over time. A growing range of accessories allow the system to be tailored to specific needs. As well as suiting most traditional applications, Outback Solutions modules can also be fitted to non traditional applications such as flat beds, trailers, buses and more.
FULL-HEIGHT ROLLER DRAWER (RD)
The traditional roll-out drawer provides 8.5 inches of internal storage height that supports up to 300lbs. The fixed top allows for additional storage or additional drawers in a stacked configuration (fixed top rated to 300lbs). ARB Roller Drawers are available in five different sizes.
ROLLER DRAWER WITH ROLLER FLOOR (RDRF)
The roller drawer roller floors provide the storage of the traditional roller drawer with the feature of the roller floor sliding top (300lb rating). ARB Roller Drawer Roller Floors are available in four different sizes.
MID-HEIGHT ROLLER FLOOR (RFH)
Just like the roller floor but with an extra inch of depth. This provides additional storage without compromising the height of your vehicle’s floor. ARB Mid-Height Roller Floor is the perfect option if you’re stuck between the roller floor and roller drawer roller floor.
LOW-HEIGHT ROLLER FLOOR (RF)
The perfect fridge slide alternative, these small drawers add less than six inches to the height of your vehicle’s floor and provide three inches of storage height. The top slides out which allows for easy access to your fridge or other accessories.
VEHICLE SPECIFIC
ARB offers vehicle-specific storage solution kits for certain vehicles. Drawer System kits include an appropriately sized roller-drawer, mounting hardware for a bolt-in solution, and a side-floor kit for a completely flat OE finish.
Installation/side-floor kits are available separately for those searching for different configurations.
Visit the Vehicle Guides to see if ARB offers an installation kit for your vehicle.
UNIVERSAL
If there is not a vehicle-specific kit for your vehicle, simply measure your cargo area to determine which drawer fits best (see drawer dimensions below).
For larger drawers, sizes 945 and up, ARB offers a universal side floor kit which will give the system a factory look while also providing a secure platform. These blank kits can be cut to match your vehicle’s interior contours. They will also act as a secure cubby with a removable top.
For more information regarding universal installation, visit our blog.
-
External Specs RD745 RDRF790 RD845 RF945 RFH945 RD945 RDRF945 RF1045 RFH1045 RD1045 RDRF1045 RF1355 RFH1355 RD1355 RDRF1355 Length 29.3″ 31″ 33.3″ 37.2″ 37.2″ 37.2″ 37.2″ 41″ 41″ 41″ 41″ 53.4″ 53.4″ 53.4″ 53.4″ Width 20″ 33″ 21″ 20″ 20″ 20″ 20″ 21″ 21″ 21″ 21″ 20″ 20″ 20″ 20″ Height 11″ 11″ 11″ 5.5″ 7.5″ 11″ 11″ 5.5″ 7.5″ 11″ 11″ 5.5″ 7.5″ 12.2″ 12.2″ -
Internal Specs RD745 RDRF790 RD845 RF945 RFH945 RD945 RDRF945 RF1045 RFH1045 RD1045 RDRF1045 RF1355 RFH1355 RD1355 RDRF1355 Length 25.6″ 26″ 29.5″ 33.8″ 33.5″ 33.5″ 33.5″ 37.8″ 37.4″ 37.4″ 37.4″ 50″ 49.4″ 49.4″ 49.4″ Width 17.1″ 29″ 18.3″ 16.5″ 16.5″ 17.1″ 17.1″ 17.7″ 18.3″ 18.3″ 18.3″ 16.5″ 17.1″ 17.1″ 17.1″ Height 8.7″ 8.7″ 8.7″ 3.0″ 4.1″ 8.7″ 8.7″ 3.0″ 4.1″ 8.7″ 8.7″ 3.0″ 4.1″ 9.8″ 9.8″
CONFIGURATIONS
Being completely modular with more than 200 different possible configurations, you can pick and choose which ARB Roller Drawer components suit your needs.
ARB ROLLER DRAWER TABLE
Have you ever tried to take multiple items out of your ARB fridge but had nowhere to place them? Have you ever tried finding a clean bench space to cut up lunch? It was out of these needs that the invention of a slide-out stainless steel table was born.
Utilizing quality materials and finished in a 304-grade brushed stainless steel finish, the ARB Roller Drawer Table provides a hygienic surface for a vast array of touring or worksite needs, such as food preparation, or additional bench space. The stainless steel sliding table attaches to the top of the ARB Outback Solutions roller drawer and can be deployed when the drawer is in either the open or closed position.
CARGO BARRIERS
In the event of emergency braking or a collision, the effects of having unrestrained cargo thrown forward can be catastrophic. For this reason, a cargo barrier is an essential piece of equipment in any 4WD wagon.
DRAWER DIVIDER
Constructed from structural ply and lined with boot carpet, dividers are a convenient way to partition sections of your drawer.
CABLE GUIDE
With the ARB Cable Guide accessory, you’ll be able to declutter, protect, and complete your unique drawer set-up by providing a safe and enclosed track for your cables.
CARGO ORGANIZER
Having a place for everything removes the guesswork of finding your cargo when you pull up at your next destination. The solution is the ARB Cargo Organizer range includes a clear PVC top so you can easily see the contents.
