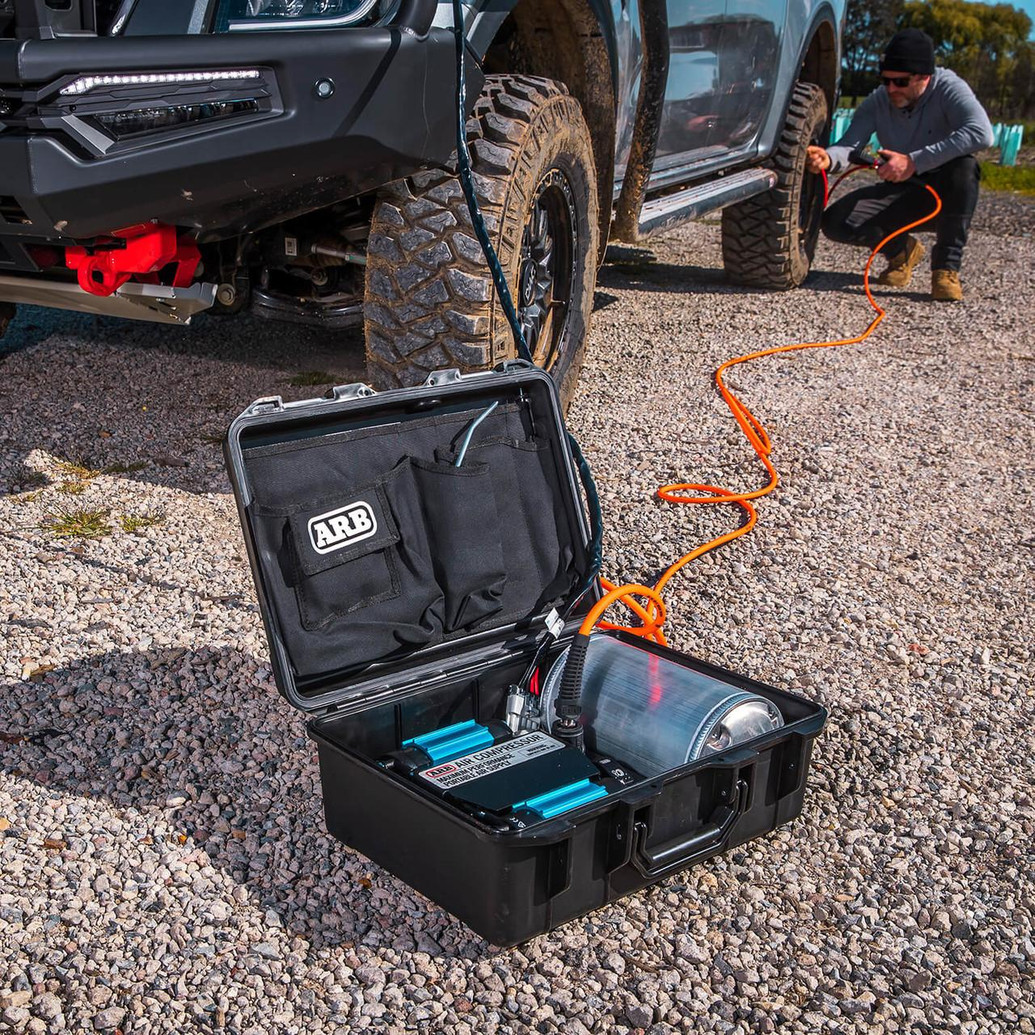

ARB's new CKMTP12 twin portable air compressor was designed to fill the market need for a compact sized yet high performance compressed air source for rapid inflation of large tires as well as the high volume air needs of most air powered tools. The ARB CKMTP12 is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions. ;
Features & Benefits
- Designed for inflating tires and Air Locker activation when used in conjunction with optional accessories
- On-board model available in either a 12V or 24V configuration
- Suitable for many air tools when used in conjunction with a 1 gallon air tank (optional with on-board models)
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodized cylinder bores for reduced friction
- Teflon impregnated carbon fiber piston seals for maximum trouble-free life
- Anodized mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Over-pressure safety valve equipped
- Prop 65 No
- Volts 12V
- Width 14 inch
- Height 7.3 inch
- Length 18.8 inch
- Weight 33 lb
- Max Psi 150
- Max Amps 68.6
- IP Rating IP55
- Duty Cycle 100% 60/0
- Air Flow 0PSI 6.16CFM
- Air Flow 29PSI 4.68CFM
- Design Portable
- Warranty 3 YR
Recommended Products & Accessories
Product Highlights
HARDSHELL CARRY CASE
QUICK DISCONNECT CLIPS
FROM TRAIL TO JOB SITE
AIR ON-THE-GO
When it comes to air, well, we can't live without it. ARB portable air compressors are an incredible resource for work and play; just ask the thousands of off-roaders around the world whom praise their reliability and performance. This hard-earned reputation stems from superior engineering and quality materials that stand the test of time.
COMPARE OPTIONS
MAXIMUM OUTPUT (TWIN MOTOR)
Providing optimum power, the ARB twin motor design delivers class-leading air flow for fast inflation purposes. The twin motors incorporate internal thermal protection against extreme temperature damage while a heavy duty in-line MAXI fuse provides professional circuit protection.
HIGH OUTPUT (SINGLE MOTOR)
With a class-leading flow rate, the single motor compressor has been designed for fast tire inflation and a range of other functions whether they be for work or play.
ARB AIR COMPRESSOR SPECIFICATIONS
| MODEL | CURRENT DRAW (NO LOAD) | AIR FLOW @ 0 KPA | AIR FLOW @ 0 PSI | CURRENT DRAW (LOAD) | AIR FLOW @ 200KPA | AIR FLOW @ 29 PSI | DUTY CYCLE | LOAD PROTECTION | AIR LOCKER® SOLENOID MANIFOLD | THERMALLY PROTECTED MOTOR |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Locker® Activation System (12V) | 5.5A | 27.7L/m | 0.98CFM | 7.5A | 19.7L/m | 0.70CFM | 35% | No | Yes | No |
| High Output 12V | 14A | 87.2L/m | 3.08CFM | 25A | 66L/m | 2.34CFM | 50% | Yes (In loom) | Yes | Yes |
| High Output 24V | 7A | 87.2L/m | 3.08CFM | 12.6A | 66L/m | 2.34CFM | 50% | Yes (In loom) | Yes | Yes |
| Maximum Performance 12V | 28A | 174.4L/m | 6.16CFM | 50A | 132L/m | 4.68CFM | 100% | Yes (In loom) | No | Yes |
| Maximum Performance 24V | 14A | 174.4L/m | 6.16CFM | 25A | 132L/m | 4.68CFM | 100% | Yes (in loom) | No | Yes |
