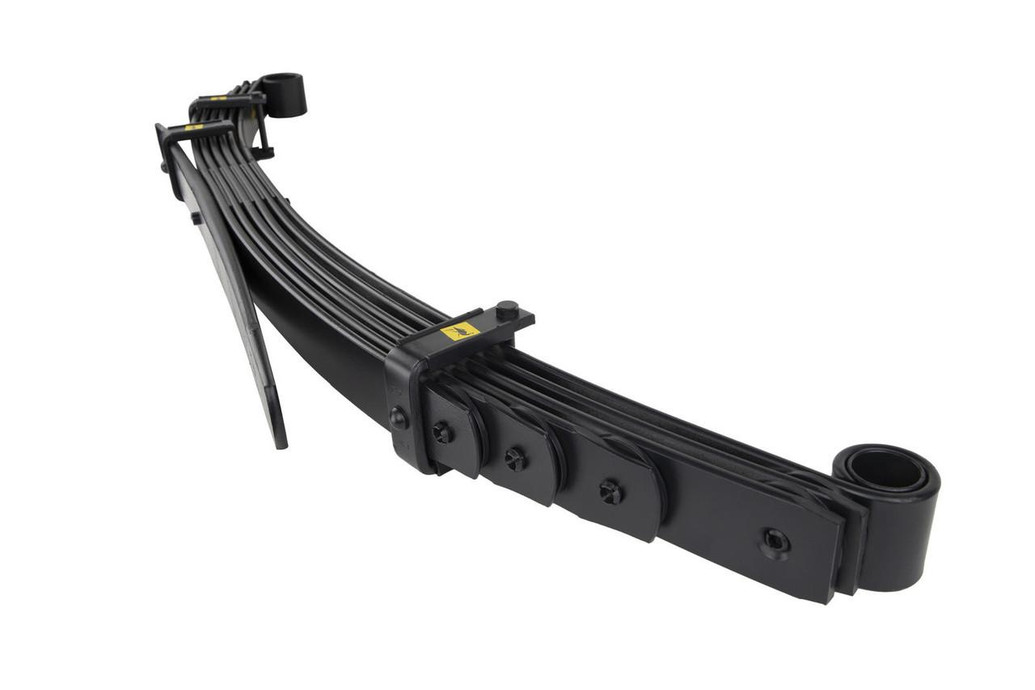

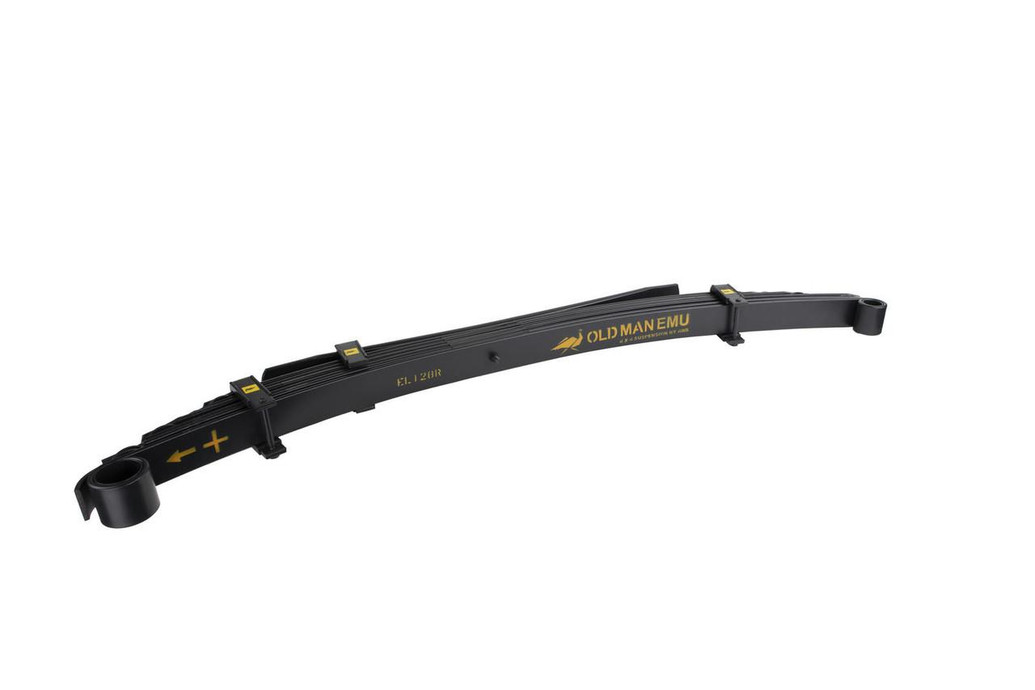

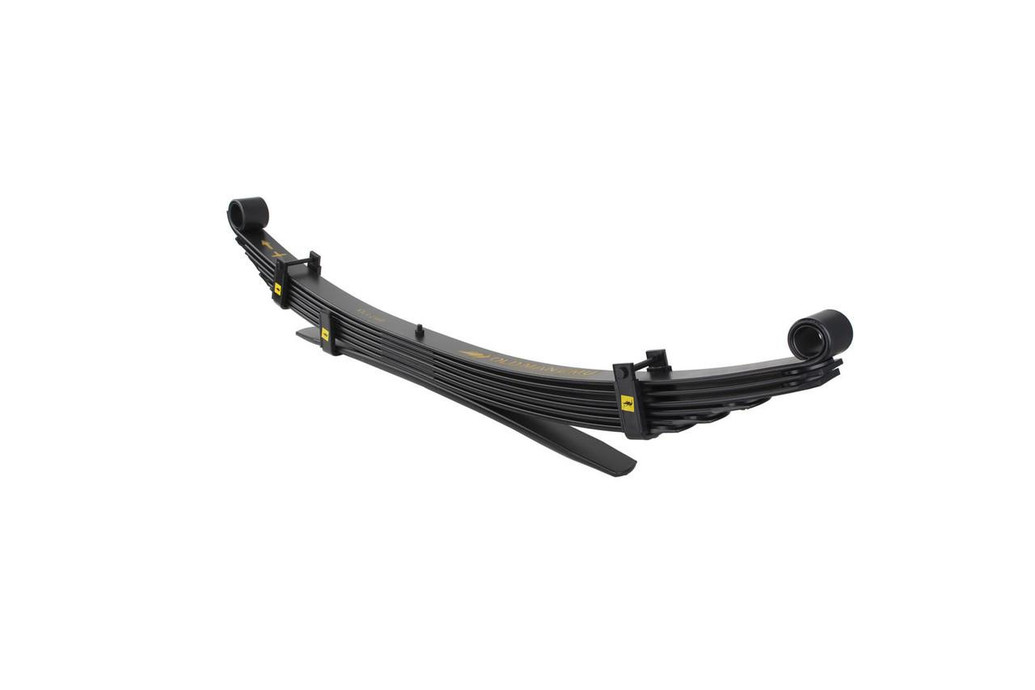

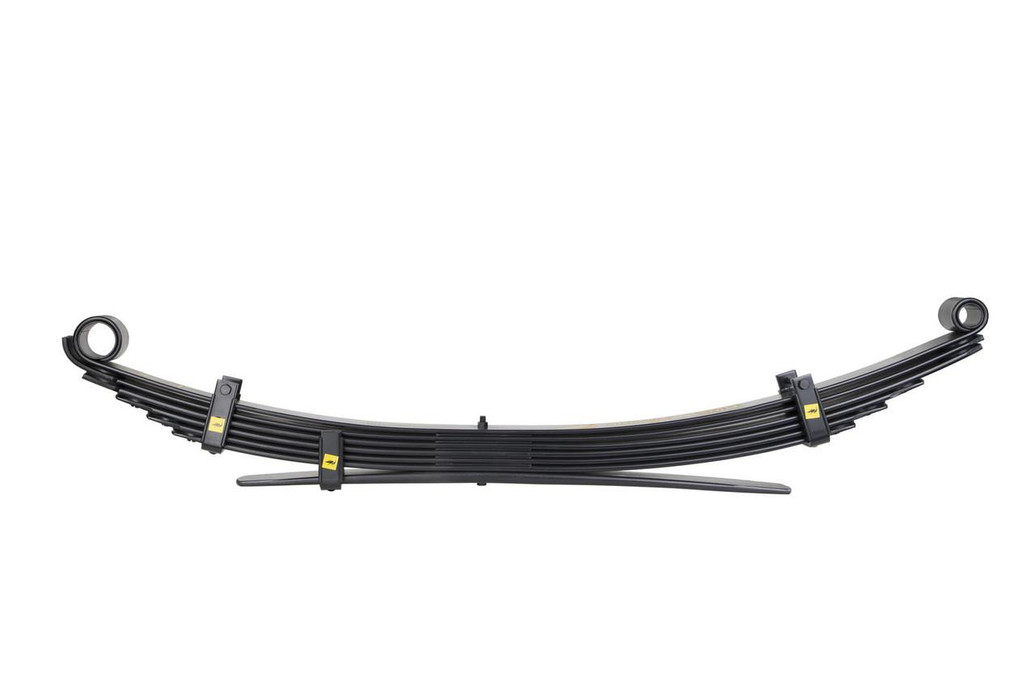

Rear Leaf Spring EL128R
Ford Ranger 2019-23
$359.95
Part Number: EL128R
OME LEAF SPRINGS
Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the conditions in which they operate.
Numerous spring options are available to suit each user's specific needs, allowing you to set your vehicle up for recreational or commercial purposes. A set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4+ù4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
FEATURES
- FLAT AXLE SEAT AREA; Lowers spring stress whilst retaining spring- free camber height. Unique to most OME springs.
- ANTI-FRICTION INTERLEAF LINERS; Used where applicable to reduce friction between spring leaves, giving better ride comfort and increased spring life.
- SHOT-PEENED; On the tension side of all leaves to double spring life.
- DRAW-TAPERED & DIAMOND CUT LEAVES; For reduced interleaf friction and improved load distribution in the load-bearing area.
- GRAPHITE-COATED; For further reduced friction.
- MILITARY-WRAPPED; For extra safety (where fitment permits).
- LOOSE-CLAMPED; For smooth and quiet operation.
OME LEAF SPRINGS
Old Man Emu leaf springs are engineered to provide optimum ride performance irrespective of the conditions in which they operate.
Numerous spring options are available to suit each user's specific needs, allowing you to set your vehicle up for recreational or commercial purposes. A set of Old Man Emu leaf springs, matched to a set of Old Man Emu 4+ù4 shock absorbers will deliver vastly improved ride, handling and load carrying capability.
FEATURES
- FLAT AXLE SEAT AREA; Lowers spring stress whilst retaining spring- free camber height. Unique to most OME springs.
- ANTI-FRICTION INTERLEAF LINERS; Used where applicable to reduce friction between spring leaves, giving better ride comfort and increased spring life.
- SHOT-PEENED; On the tension side of all leaves to double spring life.
- DRAW-TAPERED & DIAMOND CUT LEAVES; For reduced interleaf friction and improved load distribution in the load-bearing area.
- GRAPHITE-COATED; For further reduced friction.
- MILITARY-WRAPPED; For extra safety (where fitment permits).
- LOOSE-CLAMPED; For smooth and quiet operation.
Features & Benefits
- Draw-tapered and diamond cut leaves
- Bolted leaf clamps allow installation of anti-squeak nylon liners
- Fully scragged to reduce the risk of sagging
- Load tested to ensure the spring meets the required specification
- Military wrap design provides added safety
- Re-greasable nylon interleaf anti-friction pads reduce friction at the leaf tips
- Flat axle seat area allows a positive, safe axle mount and reduces spring stress
- Shot peened to reduce spring stress and increase spring life
- Two-stage leaf pack featured on most rear springs for optimum comfort
- Color Black
- Weight 23.7 kg
- Material Steel
- CA Prop 65 No
- Spring Rate 213 / 558 lbf/in
- Eye Diameter 50 mm (F) / 32.7 mm (R)
- Number Of Leaves 4+1
- Primary Free Camber 231 mm
- Prop 65 No
- Warranty 3 YR
